Introduction
Are frequent gearbox failures eating into your maintenance budget? Few things are more frustrating for an engineer than hearing the tell-tale grinding noise of a worm drive tearing itself apart weeks after installation. You chose the right ratio and the right size, yet the system failed catastrophically. Here is the cold reality: In high-friction worm drive applications, geometry means nothing if the metallurgy is wrong. Ignoring the tribological relationship between the worm and the wheel results in rapid galling, excessive heat, and costly downtime that halts your production line.
But there is a better way. By understanding the specific interactions between hardened steel, bronze alloys, and cast iron, you can engineer a drive that self-lubricates and dissipates heat efficiently. This guide examines the metallurgy behind reliable transmission, ensuring you select components that offer longevity and precision rather than just a low initial price point.
Understanding Worm Gear Material Requirements
To select the right alloy, you must first respect the unique physics of a worm drive. Unlike spur gears that roll, worm gears slide, creating a distinct set of metallurgical demands that generic gearing knowledge cannot solve.
Why is material compatibility crucial?
The sliding contact in a worm drive generates significant friction and heat. If you pair two identical metals—like steel on steel—they will likely gall and weld together under high loads due to molecular adhesion. You need dissimilar materials with specific friction coefficients to prevent this seizure and ensure the drive survives the break-in period.
- Sliding Action: Continuous sliding requires materials with inherently low coefficients of friction.
- Heat Dissipation: The wheel must act as a heat sink to pull thermal energy away from the contact patch.
- Scuffing Resistance: Materials must resist adhesive wear during boundary lubrication conditions.
How does sliding friction affect choice?
Here is the deal: You cannot simply pick the strongest metal available in the catalog. You must balance tensile strength with lubricity. The material chosen for the worm wheel needs to function almost like a bearing surface, providing a low coefficient of friction against the harder worm shaft to maintain transmission efficiency without overheating.
- Efficiency Loss: High friction materials convert input power directly into waste heat.
- Surface Destruction: Excessive sliding friction shears off micro-asperities, leading to rapid pitting.
- Lubricant Breakdown: High friction temperatures can cook the oil, destroying the protective film.
What is the “Tribological Trap”?
Engineers often fall into the trap of prioritizing hardness over conformability. While a hard gear tooth resists bending fatigue, it cannot conform to the mating shaft’s minor imperfections. A worm wheel material must have a degree of plasticity to “bed in” and create a perfect contact patch, distributing the load evenly across the tooth face.
- Conformability: The ability of the material to deform slightly to accommodate shaft deflection.
- Embeddability: The capacity to absorb abrasive particles to prevent shaft scoring.
- Elastic Modulus: A lower modulus helps reduce contact stress concentrations.
Key Takeaway: Worm drives operate primarily through sliding contact; therefore, tribological properties (friction, wear, and conformability) are just as important as tensile strength in material selection.
| Property | Importance | Ideal Characteristic | Impact on Performance |
|---|---|---|---|
| Coefficient of Friction | Critical | Low (prevents heat/wear) | Reduces operating temperature and energy loss. |
| Thermal Conductivity | High | High (dissipates generated heat) | Prevents thermal expansion seizures. |
| Surface Hardness | High (Worm) | 58–62 HRC (Case Hardened) | Resists abrasive wear from the wheel. |
| Embeddability | Moderate (Wheel) | Ability to absorb contaminants | Protects the expensive worm shaft from scoring. |
Analysis Guide: Use this section to establish the fundamental engineering challenge: managing heat and friction through the strategic pairing of dissimilar metals.

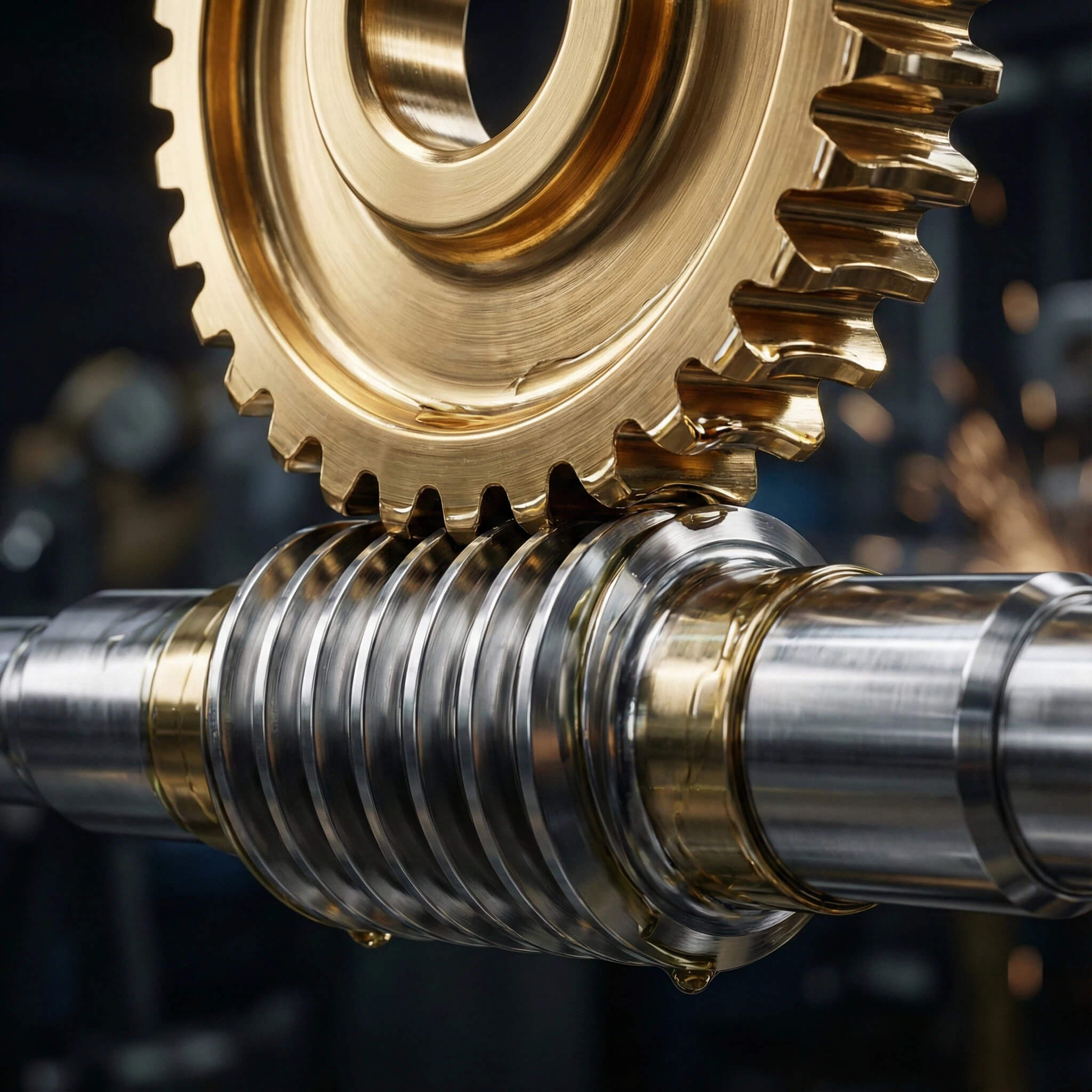

The Bronze and Steel Pairing Standard
For high-load and high-precision applications, one material combination stands above the rest. This pairing leverages the hardness of steel against the lubricity of bronze to create a durable, efficient drive.
Why use a hardened steel worm?
The worm shaft experiences the highest number of stress cycles and acts as the driver. Consequently, it must be robust. Manufacturers like Yantong Tech utilize alloy steels (such as 20CrMnTi or 42CrMo4) that are case-hardened to 58-62 HRC. This hard surface resists abrasive wear, while the ductile core remains tough enough to absorb shock loads without snapping.
- Durability: Withstands high Hertzian contact stress without surface fatigue.
- Surface Finish: Can be ground to precision tolerances (Ra 0.4 or better).
- Fatigue Strength: Resists failure under high-frequency cyclic loading.
What makes bronze the ideal wheel?
Bronze acts as the “sacrificial” component in the system. It is softer than the steel worm, meaning it will wear down slowly over time rather than destroying the expensive, precision-ground shaft. Specific alloys like Phosphor Bronze (CuSn) or Aluminum Bronze offer inherent lubricity and high load capacity, making them the industry standard for power transmission.
- Self-Lubricating: Natural copper-tin matrix reduces sliding friction.
- Conformability: The bronze “beds in” to the steel worm’s profile during initial operation.
- Corrosion Resistance: Excellent durability in diverse industrial environments.
Which bronze alloy suits your needs?
Do not assume all bronze is equal. Phosphor bronze (CuSn10P1) is the go-to for high sliding speeds due to its superior anti-galling properties and fine grain structure. However, for low-speed, high-torque applications involving heavy shock loads, Aluminum Bronze (CuAl10Ni) is preferred because of its exceptional yield strength, even though it creates slightly higher friction.
- Tin Bronze (Phosphor): Best for high speed, high efficiency, continuous duty.
- Aluminum Bronze: Best for heavy loads, shock resistance, intermittent duty.
- Lead Bronze: Used historically for high speed but rarely now due to environmental concerns.
Key Takeaway: The bronze wheel serves as a compliant, sacrificial counterpart to the rigid steel worm, protecting the system from catastrophic seizure while optimizing efficiency.
Practical Advice: The Bedding-In Procedure
Don’t ignore the contact pattern. A bronze wheel and steel worm are only as good as their initial mating. When installing a new bronze gear set, run the system at 50% load for the first few hours. This allows the bronze to conform to the steel worm’s micro-geometry without generating enough heat to cause scuffing. High-precision manufacturers like Yantong ensure matched sets where the contact pattern is verified before shipping, ensuring the load is distributed across the tooth face effectively from day one.
Analysis Guide: This section explains the “sacrificial” design philosophy where the wheel protects the critical worm shaft and how to choose between bronze variants.
Exploring Cast Iron and Plastic Options
While bronze and steel are the gold standard for industrial power transmission, other materials play vital roles in specific sectors. Understanding these alternatives allows you to optimize for cost, weight, or environment.
When should you choose cast iron?
Cast iron is a cost-effective alternative for low-speed, moderate-load applications where efficiency is not the primary concern. It contains graphite flakes that provide a degree of self-lubrication, preventing immediate seizure. However, it lacks the high efficiency and heat dissipation capabilities of bronze, making it suitable only for intermittent use or manual drives.
- Cost Efficiency: significantly cheaper raw material and machining costs compared to bronze.
- Damping: Excellent vibration damping properties reduce gear noise.
- Limitations: High friction coefficients lead to rapid heat buildup at higher speeds.
Where do plastic gears fit in?
For light loads in food processing, medical devices, or electronics, engineered plastics like Nylon or Acetal (Delrin) offer distinct advantages. They are corrosion-resistant, inherently quiet, and require little to no lubrication, eliminating the risk of product contamination.
- Weight: Significantly lighter than metal, reducing rotational inertia.
- Noise: Absorbs impact energy, resulting in silent running operation.
- Chemical Resistance: Impervious to water, washdowns, and aggressive cleaning agents.
Are there hybrid material solutions?
Yes, innovation is happening here. Some modern designs utilize a composite approach, such as a cast iron hub with a bolted-on bronze rim. This design reduces the amount of expensive bronze required while maintaining the structural integrity of the hub. Other hybrids include steel cores over-molded with high-performance polymers to combine strength with silent operation.
- Cost Reduction: Minimizes the use of expensive copper alloys.
- Strength: Retains the keyway strength of iron or steel.
- Versatility: Allows for replaceable rims on large industrial gears.
Key Takeaway: Cast iron offers economy for general, low-speed machinery, while engineered plastics solve specific weight and contamination challenges in light-duty applications.
| Material | Cost | Load Capacity | Lubricity | Typical Application |
|---|---|---|---|---|
| Tin Bronze | High | High | Excellent | Heavy Industrial / Marine |
| Aluminum Bronze | High | Very High | Good | Heavy Shock Loads / Construction |
| Cast Iron | Low | Moderate | Fair | Hand-cranks / Conveyors |
| Plastic (Nylon) | Medium | Low | Good (Dry) | Food / Electronics / Medical |
| Composite (Fe/Cu) | Medium | High | Excellent | Large Diameter Industrial Gears |
Analysis Guide: Compare these alternatives against the bronze/steel standard to show trade-offs in cost versus performance for specialized applications.
Key Factors for Material Selection
Selecting the right alloy requires analyzing the operating environment and duty cycle, not just the catalogue specifications. A material that excels in a clean, dry factory may fail miserably in a marine environment.
How do load and speed impact choices?
It comes down to this: High torque requires high yield strength, while high speed requires heat dissipation. If you are moving heavy loads at low speeds, Aluminum Bronze is often superior due to its high tensile strength and fatigue resistance. Conversely, for high-speed applications, Phosphor Bronze is better due to its superior anti-galling properties and ability to shed heat rapidly.
- High Speed: Prioritize low friction coefficient (Phosphor Bronze).
- High Torque: Prioritize yield strength (Aluminum Bronze or Nickel Bronze).
- Shock Loads: Prioritize toughness and core ductility (Case-hardened Steel).
Why does the operating environment matter?
Environmental factors like moisture, salt spray, extreme temperatures, or chemicals dictate material choice beyond mechanical properties. Stainless steel worms are essential in food or marine sectors to prevent rust, which would act as an abrasive file on the soft worm wheel.
- Marine: Requires Aluminium Bronze wheel and Stainless Steel (304/316) worm.
- Food Safe: Requires Stainless Steel and FDA-approved plastics or specialized bronzes.
- High Temp: Requires heat-treated steel and specialized bronze with high creep resistance.
Does the duty cycle dictate alloy choice?
Absolutely. A gearbox running 24/7 needs different materials than one running for 10 minutes a day. Continuous duty cycles generate heat saturation, requiring materials with maximum thermal conductivity (like Tin Bronze). Intermittent cycles allow for cooling periods, enabling the use of materials like Cast Iron or Aluminum Bronze that might otherwise overheat under constant load.
- Continuous Duty (S1): Demands high thermal conductivity and low friction.
- Intermittent Duty (S3): Allows for stronger, higher-friction materials.
- Stalled Load: Requires materials with high static yield strength to prevent tooth deformation.
Key Takeaway: You must match the material properties not just to the torque requirement, but to the thermal and environmental realities of the application.
Practical Advice: Context is Everything
Pro Tip: A generic catalog might suggest a material based on ISO standards, but a partner like Yantong Tech will analyze your specific “working condition” first. They often recommend material adjustments based on actual duty cycles—such as upgrading to a nickel-bronze for a high-shock application—to prevent over-engineering or premature failure. Trustworthy reverse engineering involves determining the intent of the original design, not just copying the dimensions.
Analysis Guide: Use this section to guide the reader on how to match their specific application constraints to the material properties.
Manufacturing Processes and Heat Treatment
The best material is useless without precise processing and heat treatment. The microstructure of the metal determines its performance, and that structure is defined by how the gear is made.
Why is heat treatment essential?
Raw steel is too soft for a worm shaft and would wear out almost instantly. Processes like carburizing inject carbon into the surface layer, creating a glass-hard shell (case) typically 0.5mm to 1.0mm deep, while leaving the core tough. This allows the gear to handle shock loads without snapping and surface wear without pitting.
- Carburizing: Deep hardening (58-62 HRC) for heavy-duty power transmission.
- Nitriding: Surface hardening (60-65 HRC) with minimal distortion, good for precision applications.
- Induction Hardening: Localized hardening for cost efficiency on larger shafts.
How does surface finish reduce wear?
A rough worm shaft acts like a file against a bronze wheel, shredding it within hours. Precision grinding and polishing are non-negotiable for high-efficiency drives. The surface roughness (Ra) should ideally be below 0.4µm to ensure a hydrodynamic oil film can form between the sliding surfaces.
- Grinding: Removes heat treatment distortions and achieves profile accuracy.
- Polishing: Reduces micro-peaks that penetrate the oil film.
- Superfinishing: Optional process for ultra-low noise and high-speed applications.
How does profile accuracy impact material life?
Precision saves metal. If the tooth profile deviates from the theoretical spiral, the load concentrates on small “high spots” rather than the full face. This causes localized overheating and material failure. Yantong Tech emphasizes “Data Archiving,” ensuring every batch has traceable heat treatment curves and profile inspections to guarantee the contact patch is optimized.
- Tooth Contact Analysis: Verifies the mating area is centered.
- Lead Error Correction: Compensates for shaft deflection under load.
- Runout Control: Prevents vibration that fatigues the bronze wheel.
Key Takeaway: Metallurgy extends beyond the alloy name; the heat treatment depth and surface finishing (grinding/polishing) define the component’s actual lifespan.
| Process | Purpose | Target Hardness | Component |
|---|---|---|---|
| Carburizing | Deep wear resistance | 58-62 HRC | Steel Worm Shaft |
| Nitriding | Low-distortion hardening | 60-65 HRC | Precision Worm Shaft |
| Centrifugal Casting | Densifying grain structure | 90-100 HB | Bronze Wheel Blank |
| Grinding | Smoothing surface finish | N/A | Steel Worm Thread |
| Hobbing | Cutting tooth geometry | N/A | Bronze Wheel Teeth |
Analysis Guide: Explain how the manufacturing method unlocks the potential of the raw material and why “hard” isn’t enough without “smooth.”

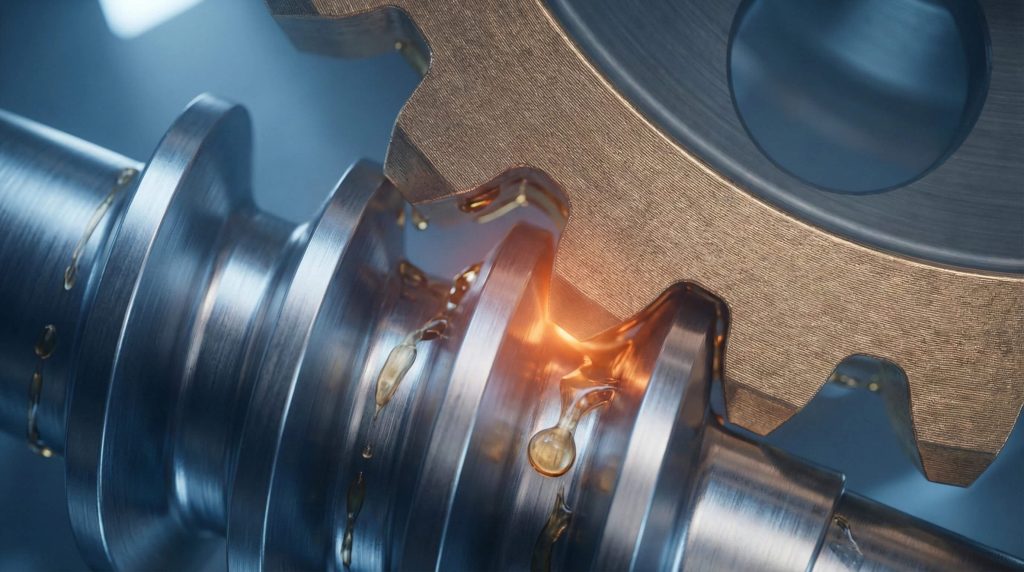

Lubrication and Material Compatibility
You must consider the chemical interaction between your lubricant and your gear materials. The oil is not just an accessory; it is a structural component of the transmission system.
Can wrong oil damage bronze gears?
Here is a warning: Many Extreme Pressure (EP) gear oils contain active sulfur-phosphorus additives. While these are great for protecting steel spur gears, active sulfur attacks “yellow metals” like bronze, causing chemical corrosion and severe pitting. You must select lubricants specifically formulated to be compatible with copper-based alloys, typically tested against ASTM D130 standards.
- Corrosion: Sulfur reacts with copper to form brittle sulfides that flake off.
- Pitting: Chemical attack creates craters on the gear tooth surface.
- Discoloration: Bronze turns black or dark grey indicating chemical reaction.
What is the role of viscosity?
The lubricant must maintain a film between the sliding surfaces to prevent metal-to-metal contact. If the viscosity is too low, the film breaks under the sliding pressure, leading to immediate galling. If it is too high, it causes fluid drag (churning loss) and overheating, which reduces the oil’s life.
- PAG Oils: Polyalkylene Glycols offer excellent lubricity and low friction coefficients.
- Mineral Oils: Cost-effective but require careful additive selection and frequent changes.
- Compounded Oils: Mineral oils with fatty acids added to improve film strength for sliding contacts.
How to identify sulfur corrosion?
If you open a failed gearbox and the bronze wheel looks black or etched, you likely have a lubricant compatibility issue. Do not just replace the gear. You must flush the system and switch to a lubricant that is rated “yellow metal safe.” A simple oil analysis can reveal high levels of dissolved copper, indicating that your oil is chemically dissolving your gears.
- Visual Inspection: Look for dark staining or etching on bronze parts.
- Oil Analysis: Check for copper spikes in the PPM count.
- Smell Test: Some aggressive sulfur oils have a distinct rotten egg odor.
Key Takeaway: Lubricant compatibility is a material property issue. Using the wrong oil is chemically equivalent to pouring acid into your gearbox.
Practical Advice: Watch the Temperature
Expert Insight: Bronze loses mechanical strength as temperatures rise. Proper lubrication isn’t just about reducing friction; it’s the primary cooling mechanism. Ensure your housing design allows for adequate oil circulation to keep the bronze wheel within its safe operating thermal range (typically below 90°C). If you are pushing the thermal limits, switch to a synthetic PAG oil, which has a higher viscosity index and better thermal stability than mineral oil.
Analysis Guide: Connect the material choice to the maintenance requirement, emphasizing that oil is a “liquid gear” that must match the solid gears.
Conclusion
Selecting the correct materials for worm gears is a balancing act between strength, friction, and cost. The industry standard remains a case-hardened steel worm paired with a phosphor or aluminum bronze wheel, offering the optimal mix of durability and lubricity. However, for cost-sensitive or specialized environments, cast iron and plastics provide viable alternatives that should not be overlooked.
Reliability in transmission doesn’t happen by accident—it is engineered. Whether you need a custom reverse-engineered solution for a legacy machine or a high-volume production run for a new OEM product, Yantong Tech acts as your technical partner, not just a factory. By focusing on truthful quoting, precise heat treatment curves, and engineer-to-engineer communication, Yantong ensures your gears are built for the reality of your operational environment.
Ready to eliminate gearbox uncertainty? Contact Yantong Tech today for a consultation on your specific transmission requirements and let us engineer a solution that lasts.
FAQ
- Can I use a steel worm with a steel worm wheel?
No, typically you should not. While it sounds strong, steel-on-steel creates high friction and will likely gall or weld together due to the intense heat generated by sliding contact. You need dissimilar metals to prevent seizure. - Is bronze always the best choice for the worm wheel?
It depends on your load and budget. Bronze is the “gold standard” for high-efficiency and high-load industrial applications, but for low-speed, low-cost setups, cast iron might be sufficient and significantly cheaper. - Why does the worm shaft need to be heat treated?
Yes, absolutely. The worm shaft undergoes intense stress cycles and continuous sliding wear. Without hardening (like carburizing to 58-62 HRC), the shaft would wear out rapidly and fail prematurely. - Can I use standard gear oil for my worm drive?
It depends on the additives. You must check if the oil contains active sulfur, which attacks bronze (yellow metals). Always use a lubricant specifically rated for worm gears and compatible with bronze alloys to prevent corrosion. - Do plastic worm gears last as long as metal ones?
No, generally they do not under load. Plastic gears are excellent for noise reduction and corrosion resistance in light-duty applications, but they cannot handle the torque or heat that a steel and bronze combination can.
