Introduction
Are your standard gear systems failing to hold heavy loads safely, or is your factory floor cluttered with bulky transmission housings that eat up valuable space? In industrial environments, utilizing the wrong gear type often leads to dangerous back-driving and inefficient machinery layouts.
This problem quickly escalates into frequent maintenance headaches, overheating gearboxes, and the dreaded cost of unscheduled downtime that destroys your production targets. When equipment fails, your profitability stalls.

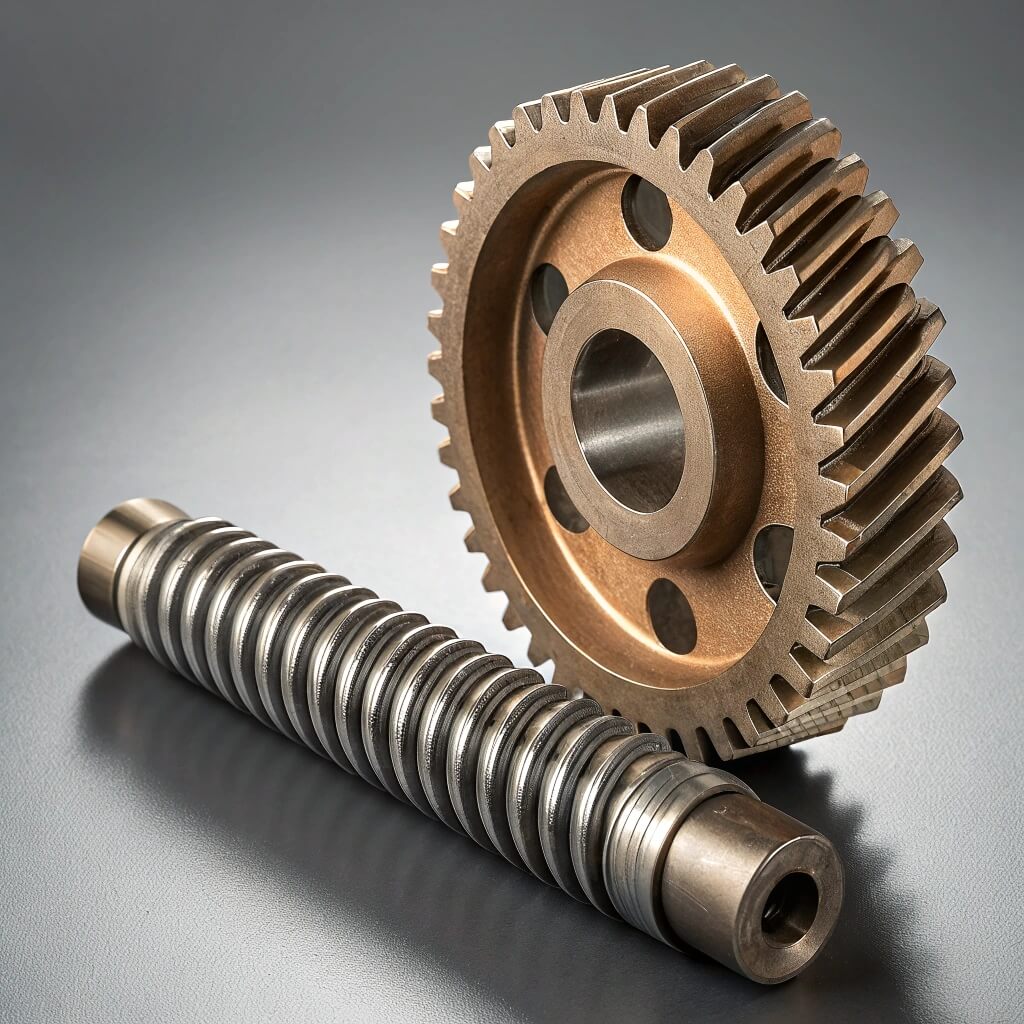

The solution lies in the worm and wheel gear mechanism—a compact, high-ratio powerhouse designed specifically for self-locking applications and tight spaces. By partnering with Yantong Tech, you gain access to traceable, high-precision manufacturing that ensures your machinery runs reliably, reducing maintenance costs and keeping your operations online.

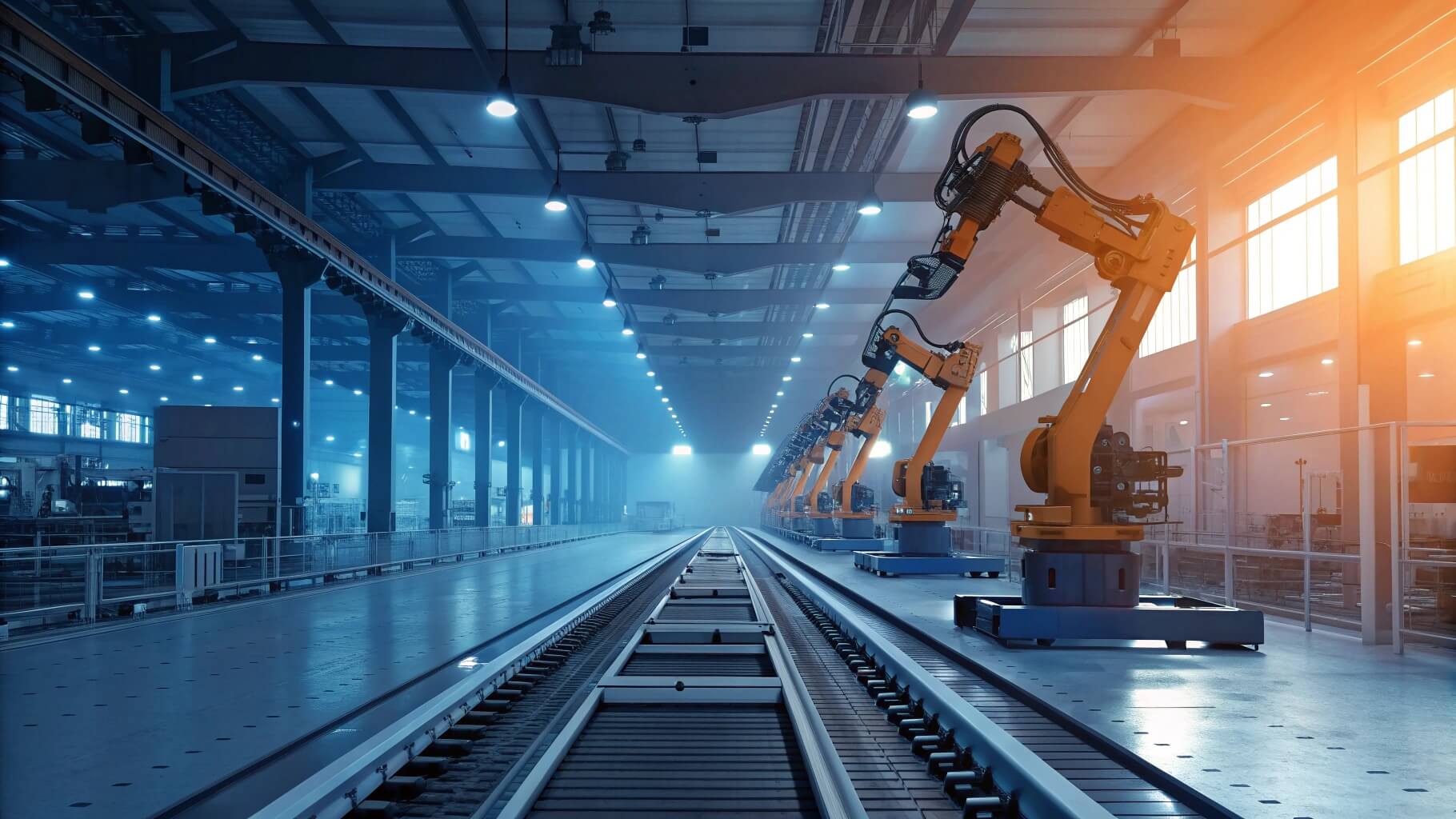

1. Worm and Wheel Gear Uses in Conveyor Systems
Why Choose Worm Gears for Conveyors?
Conveyors are the lifelines of production, but they often require significant speed reduction from the motor to the belt. Here’s the deal: standard gears typically require multiple stages and larger footprints to achieve what a single worm gear set can do in one step. This efficiency simplifies your drivetrain design immediately.
Managing Limited Space Effectively
Floor space is premium real estate in any facility. The 90-degree drive layout of a worm and wheel gear allows the motor to be mounted parallel to the conveyor frame. This saves lateral space, allowing you to place conveyor lines closer together without protruding motors creating hazards.
How Does Torque Impact Performance?
Torque transmission is critical when moving heavy bulk materials. You need a system that provides consistent power without slipping.
- High-start torque capabilities.
- Steady transmission under variable loads.
- Resistance to shock loads during start-up.
Key Takeaway: Worm gears maximize torque in tight spaces, keeping your assembly lines moving without bulky transmission housings.
| Conveyor Type | Recommended Ratio Range | Primary Benefit |
|---|---|---|
| Flat Belt | 10:1 – 30:1 | High speed, lower torque |
| Incline Belt | 40:1 – 60:1 | Anti-rollback safety |
| Heavy Bulk | 50:1 – 70:1 | Maximum torque output |
Analysis: This data confirms that steeper incline conveyors require higher reduction ratios to prevent slippage and ensure safety.
2. Worm and Wheel Gear Uses in Heavy Elevators
How Do You Ensure Passenger Safety?
In vertical transport, safety is non-negotiable. Worm gears are favored here because of their inherent self-locking properties, which prevent the load from freefalling if the power cuts out. But there’s a catch: this safety feature relies heavily on the lead angle of the gear; it must be calculated precisely to be effective.
Reducing Noise in Residential Lifts
Unlike the clicking impact of spur gears, the sliding contact of a worm and wheel results in exceptionally quiet operation. This is critical for residential lifts where mechanical noise is a major nuisance for building occupants.
Maintenance Schedules You Must Follow
Because of the friction generated by bronze sliding on steel, lubrication is vital.
- Check for bronze particles in the oil (indicates wear).
- Monitor operating temperatures regularly.
- Adhere to strict oil change intervals to maintain film strength.
Key Takeaway: Utilizing the natural braking ability of worm gears drastically reduces reliance on secondary braking systems in vertical transport.
| Lead Angle (Degrees) | Self-Locking Capability | Efficiency |
|---|---|---|
| < 5° | Excellent (Static Hold) | Low |
| 5° – 10° | Moderate (Dynamic Slowing) | Medium |
| > 25° | Poor (Requires Brake) | High |
Analysis: Lower lead angles provide superior static holding power but sacrifice efficiency during active lifting.
3. Worm and Wheel Gear Uses in Packaging Lines
Achieving Precision in Positioning
Packaging machines often run on stop-start cycles for filling and sealing. The sliding action of the worm gear allows for precise indexing, ensuring that containers are perfectly aligned with filling nozzles every single time.
Can They Handle High-Speed Operations?
Rapid indexing generates significant heat due to friction. Now, consider this: as speed increases, the thermal risk to the gearbox rises. Proper material selection and cooling strategies are essential to prevent the lubricant from breaking down during high-speed runs.
Minimizing Vibration for Delicate Goods
If you are packaging fragile items like glass or electronics, vibration is the enemy.
- Prevents micro-cracks in glass bottles.
- Ensures accurate seal alignment on pouches.
- Reduces rejection rates for sensitive electronics.
Key Takeaway: Smooth power transmission ensures your fragile products are packaged without breakage or misalignment errors.
| Machine Speed (CPM) | Recommended Gear Material | Cooling Need |
|---|---|---|
| Low (<50) | Standard Bronze | Passive |
| Medium (50-150) | Centrifugally Cast Bronze | Fan Assisted |
| High (>150) | Special Alloy Bronze | Forced Oil |
Analysis: Selecting the right bronze alloy for the wheel significantly extends component life in high-cycle packaging environments.
4. Worm and Wheel Gear Uses in Valve Actuators
Controlling Flow with Exact Precision
In the oil and gas industry, controlling the flow of volatile fluids requires quarter-turn precision. Worm gears provide the granular control needed to open or close massive pipeline valves by exact degrees, ensuring flow rates are managed perfectly.
Why Is High Reduction Ratio Crucial?
Actuators need to convert high motor speed into slow, powerful valve turning. It gets better: the massive mechanical advantage allows you to use smaller, less expensive motors to generate the immense torque required to unseat a stuck valve.
Withstanding Harsh Field Environments
Yantong Tech applies specific material treatments to ensure gears survive outdoors.
- Salt spray exposure in offshore rigs.
- Grit and sand infiltration in desert pipelines.
- Extreme temperature fluctuations.
Key Takeaway: High mechanical advantage allows small, efficient motors to actuate massive pipeline valves reliably.
| Valve Size (Inches) | Input Torque Required | Gearbox Ratio |
|---|---|---|
| 4″ – 8″ | Moderate | 40:1 |
| 10″ – 20″ | High | 60:1 |
| > 24″ | Extreme | 80:1+ |
Analysis: Larger valves demand exponentially higher torque, making the mechanical advantage of worm sets non-negotiable.
5. Worm and Wheel Gear Uses in Mining Equipment
Surviving Dust and Heavy Debris
Mining environments are notoriously dirty. Worm gear units in crushers and feeders are typically fully sealed, preventing abrasive rock dust from entering the gear mesh and destroying the contact surfaces.
How Do We Handle Massive Shock Loads?
When a rock crusher jams, the drivetrain takes a hit. You might be wondering: why doesn’t the gear snap? The bronze worm wheel is softer than the steel shaft, allowing it to absorb the shock load and deform slightly without catastrophic breakage, saving the motor.
Testing for Extreme Durability
Yantong ensures reliability through traceability in heat treatment.
- Ultrasound testing for subsurface flaws.
- Hardness testing on worm shafts (HRC standards).
- Material certification for every batch.
Key Takeaway: The shock-absorbing properties of the softer worm wheel protect your expensive drive motors from sudden jamming loads.
| Component | Material Hardness (HRC) | Function |
|---|---|---|
| Worm Shaft | 58-62 HRC | Resist Abrasion |
| Worm Wheel | 120-160 HB (Brinell) | Absorb Shock |
Analysis: Increasing the surface hardness of the worm shaft is critical to resisting abrasion from particulate contamination.
6. Worm and Wheel Gear Uses in Textile Machinery
Maintaining Consistent Fabric Tension
In textile production, pulsing or uneven speed causes fabric stretching and defects. Worm gears provide a continuous, smooth output torque that maintains constant tension on rollers, ensuring the fabric is wound evenly.
Why Is Quiet Operation So Vital?
Textile factories often have hundreds of machines running simultaneously. Think about it: if every machine used noisy spur gears, the decibel level would be hazardous. Worm gears help keep the factory floor compliant with noise safety regulations.
Solving Common Lubrication Leakage
Oil stains can ruin an entire batch of fabric.
- Sealed gear units prevent drips.
- Use of food-grade or clear lubricants.
- Double-lip seals for extra security.
Key Takeaway: Vibration-free rotation directly translates to uniform weave quality and reduced rejection rates in textile production.
| Application | Tension Consistency | Fabric Defect Risk |
|---|---|---|
| Spur Gear Drive | Pulsing | High (Streaks) |
| Worm Gear Drive | Smooth/Constant | Low |
Analysis: Consistent torque output prevents fabric stretching and ensures uniform spooling density.
7. Worm and Wheel Gear Uses in Food Processing
Meeting Strict Hygiene Standards
Food processing equipment must be easy to clean. Worm gearboxes designed for this sector feature smooth housings without ribs or crevices where bacteria can hide, ensuring compliance with hygiene audits.
Resisting Washdown Corrosion
Equipment is blasted with caustic chemicals daily. Here is the truth: standard cast iron rusts immediately, ruining your compliance. Utilizing stainless steel shafts or specialized coatings is mandatory to survive the washdown cycle.
Is Stainless Steel Always Mandatory?
While solid stainless is best, it is expensive.
- Epoxy coatings for non-contact areas.
- Nickel-plated shafts.
- Food-safe stainless specifically for the worm shaft.
Key Takeaway: Corrosion-resistant gear sets prevent contamination risks during aggressive daily washdown cycles.
| Protection Level | Cost | Durability (Washdowns) |
|---|---|---|
| Painted Iron | Low | Low (Flaking risk) |
| Epoxy Coated | Medium | Medium |
| Stainless Steel | High | Extreme |
Analysis: While stainless steel offers maximum protection, specialized coatings can provide a more cost-effective solution for non-contact zones.
8. Worm and Wheel Gear Uses in Hoist Systems
Lifting Heavy Loads with Confidence
Whether in theater rigging or industrial cranes, hoists require high torque to lift loads vertically. Worm gears deliver this power in a package small enough to fit into overhead trolleys.
Integrating Backup Braking Systems
Make no mistake: gravity never sleeps. While worm gears are self-locking, industrial safety standards mandate a secondary mechanical brake. The gear provides the primary hold, while the brake acts as the fail-safe redundancy.
Advantages of Compact Design
- Allows higher lifting heights in low-ceiling buildings.
- Reduces the weight of the trolley mechanism.
- Simplifies the overall hoist architecture.
Key Takeaway: The compact nature of worm gears allows you to maximize lifting height by reducing the headspace required for the hoist mechanism.
| Gear Type | Lift Capacity per Cubic Inch | Space Efficiency |
|---|---|---|
| Worm Gear | High | Excellent |
| Helical Gear | Medium | Good |
| Spur Gear | Low | Poor |
Analysis: Worm gears provide the highest lifting capacity per cubic inch of gearbox volume compared to other gear types.
9. Worm and Wheel Gear Uses in Rotary Tables
How to Achieve Zero Backlash?
Precision machining requires zero play in the rotation. By using duplex worm gears (where the tooth thickness varies), you can adjust the worm axially to remove backlash completely as the gear wears over time.
How Precise Is the Indexing?
For 5-axis CNC machines, accuracy is everything. What does this mean for you? It means producing parts that meet aerospace tolerances. A high-quality worm set ensures the table holds its angle rigidly against cutting forces.
Yantong’s Custom Precision Solutions
We manufacture specifically for machine tool builders.
- DIN/AGMA tolerance classes tailored to your needs.
- Custom backlash adjustments.
- Traceable metrology reports for every gear set.
Key Takeaway: Adjustable backlash designs ensure your indexing tables remain accurate even after years of continuous operation.
| Application | Required Backlash | Tolerance Grade |
|---|---|---|
| General Assembly | 5-10 arc-min | DIN 7-8 |
| Standard Milling | 2-5 arc-min | DIN 5-6 |
| Precision CNC | < 1 arc-min | DIN 3-4 |
Analysis: For CNC applications, maintaining backlash below 1 arc-minute is essential for meeting modern tolerance standards.
Conclusion
From the depths of a mine to the sterile environment of a food processing plant, worm and wheel gears solve critical engineering challenges regarding space, torque, and braking. Their ability to provide high reduction ratios in compact footprints makes them indispensable for modern industrial machinery.
Yantong Tech empowers industries with reliable, traceable gear solutions. We don’t just supply parts; we provide high-precision components backed by rigorous quality control and full material traceability, ensuring your machinery lasts longer and performs better.
Ready to optimize your transmission systems? Contact Yantong Tech today to review your drawings and secure a truthful, risk-free quote for your transmission needs.
FAQ
- Can I replace a bronze worm wheel with a steel one for strength?
No, using steel on steel will likely cause rapid failure and seizing. The bronze material acts as a sacrificial surface to lower friction and prevent the worm shaft from welding to the wheel under heat. - What’s the best lubricant to use for these gear sets?
You must use a high-viscosity, compounded gear oil specifically designed for sliding friction. Standard motor oils cannot maintain the necessary film strength between the sliding teeth, leading to premature wear. - How do I know if my gear set will be self-locking?
Self-locking generally occurs when the lead angle of the worm is less than the friction angle of the materials, usually under 5 degrees. However, you cannot rely solely on this for safety; a mechanical brake is always recommended for lifting applications. - Can Yantong Tech manufacture custom ratios not found in catalogs?
Yes, our engineering team can calculate and manufacture custom tooth profiles and ratios to fit your specific machine requirements. We control the entire process from hobbing to grinding to ensure the custom design performs reliably. - Is heat generation a major problem for worm gears?
Yes, the sliding action creates more heat than rolling gears like spur gears. Proper sizing, correct lubrication, and selecting the right materials from a partner like Yantong are essential to dissipate this heat and prevent gearbox failure.
