1. Introduction
You install a new gearbox, the lines are running, and everything seems optimized. But within weeks, the efficiency drops, amperage spikes, or the temperature gauge starts climbing into the red zone. In the world of worm drives, high sliding friction is the unavoidable reality, and heat is the ultimate enemy. While helical or spur gears roll against each other, worm gears slide—a continuous, grinding contact that generates significant thermal energy.
Unplanned downtime is not just an annoyance; it creates a massive burn rate in your operational budget. Replacing a stripped gear might be relatively cheap in terms of parts, but the cost of a line stoppage can run into thousands of dollars per hour. There are few things more frustrating for an engineer than “mystery failures,” where a gear looks visually intact but fails catastrophically under load because the metallurgy wasn’t up to the task.

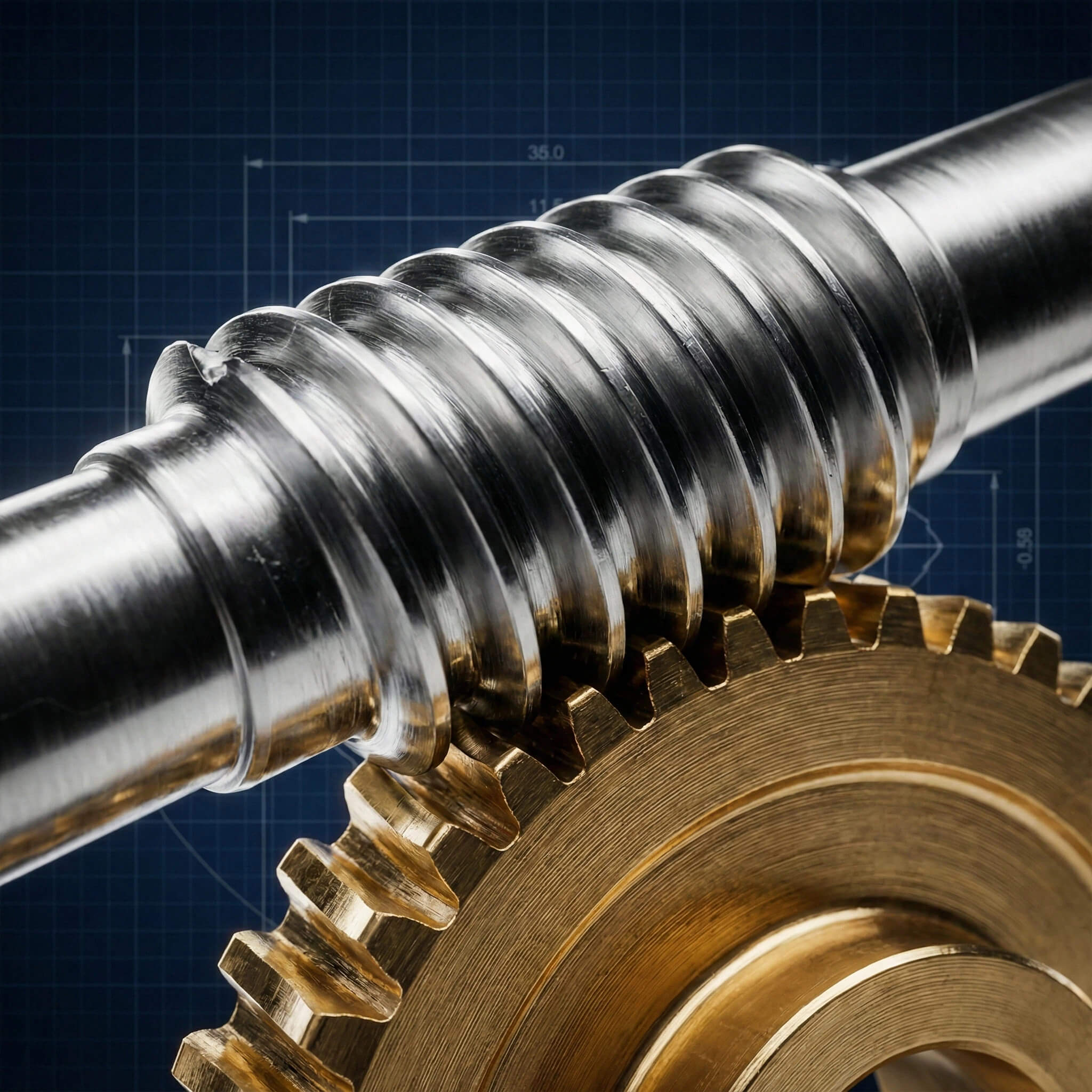

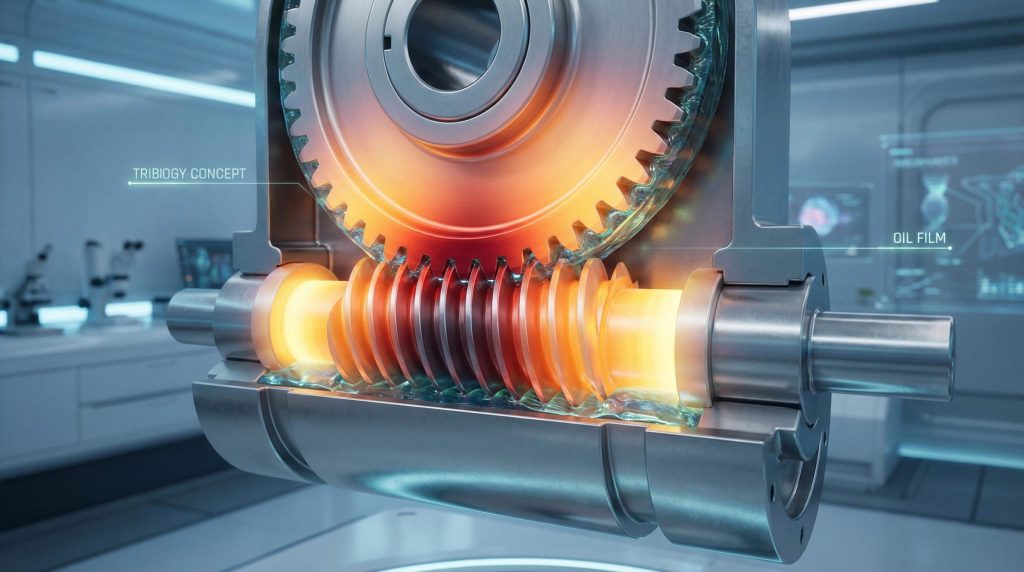

The fix is rarely found in better lubrication alone; it is found in tribology—the science of wear and friction. Material selection is not guesswork. Choosing the correct pair—usually a hard worm shaft and a softer, sacrificial wheel—determines the entire lifespan of your machine. At Yantong Tech, our philosophy is simple: We don’t just machine metal to print; we engineer stability through correct material matching to ensure your transmission systems survive the harsh reality of industrial friction.
2. Why Hardened Steel Dominates Worm Gear Materials
When it comes to the worm shaft—the driver of the system—there is no room for compromise. Steel is the non-negotiable standard for this component. The shaft must withstand high input torque, resist deflection under load, and maintain a perfectly smooth surface while grinding against the mating wheel. Any imperfection here acts like a file, chewing up the softer gear in a matter of hours.
Which Steel Grades Offer the Best Durability Factors?
Not all steel is created equal. In the transmission industry, generic low-carbon steel will not suffice. You need alloy steels capable of achieving specific metallurgical structures. At Yantong Tech, we primarily utilize 20CrMnTi and 18CrNiMo7-6 for high-performance worm shafts. These grades provide the necessary toughness to handle shock loads without snapping.
Here is the reality.
You cannot rely on standard steel for precision gearing. You need materials that offer:
- High core strength: To resist shock loads and sudden torque spikes without brittle fracture.
- Surface hardenability (Carburizing): The ability to accept a carbon-rich case that creates a glass-hard surface while leaving the center tough.
- Availability and cost-effectiveness: A balance between premium performance and realistic manufacturing costs.
The Critical Role of Surface Hardness (HRC 58-62)
Why do we target a Rockwell C hardness of 58-62? Because the worm shaft must be significantly harder than the wheel it drives. If the surface is too soft (below HRC 50), the steel will suffer from adhesive wear, or “scoring,” where metal is torn from the surface. Conversely, if the core is too hard, the shaft becomes brittle and will crack under the bending forces of the drive. The magic lies in the gradient—a diamond-hard outer shell protecting a resilient, ductile core.
Does Stainless Steel Work for Worm Shafts?
Engineers in the food and pharmaceutical sectors often ask for Stainless Steel 304 or 316 to meet hygiene standards. While excellent for corrosion resistance, standard austenitic stainless steel is mechanically softer and prone to “galling”—a form of cold welding where the materials stick together under pressure. Unless you use specialized precipitation-hardening stainless steels, you risk rapid failure.
Key Takeaway: The worm shaft must always be the harder partner in the friction equation to maintain transmission accuracy. If you compromise on shaft hardness, you compromise the entire gearbox.
| Material Grade | Typical HRC | Pros | Cons | Ideal Application |
|---|---|---|---|---|
| 20CrMnTi | 58-62 | Excellent wear resistance, tough core, standard availability. | Requires precise heat treatment control to prevent distortion. | Heavy-duty industrial gearboxes. |
| 42CrMo4 | 50-55 | Good toughness, easier to machine. | Lower surface hardness compared to carburized grades. | Medium-duty, lower cost drives. |
| 18CrNiMo7-6 | 58-62 | Superior core toughness, high impact resistance. | Higher material cost. | High-shock applications (mining, crushing). |
| SS316 | < 30 | Corrosion resistant, food-safe. | Low hardness, high risk of galling/seizing. | Washdown environments (requires derating). |
Analysis: This section establishes the “hard” half of the friction pair, setting the baseline for selecting the mating wheel.
3. Phosphor Bronze: The Gold Standard for Gearbox Alloys
For 80% of industrial applications, phosphor bronze is the correct answer for the worm wheel. It offers the perfect tribological balance: it is hard enough to transmit power but soft enough to yield slightly to the hardened steel worm. This “yielding” allows the bronze to bed in, creating a perfect mating surface that maximizes contact area and minimizes pressure per square inch.
Why is CuSn12Ni2 the Go-To for Manufacturing Engineers?
Phosphor bronze, particularly grades like CuSn12Ni2 or CuSn10P1, acts as a “sacrificial” component. It is designed to wear very slowly over time, preserving the expensive and difficult-to-replace steel worm shaft. It effectively acts as a solid lubricant.
Think about it this way.
If you rub two pieces of hardened steel together without perfect oil film, they destroy each other. Bronze prevents this. It provides:
- Low coefficient of friction: drastically reduces operating temperature compared to steel-on-steel or iron-on-steel.
- Excellent resistance to wear: specifically under high sliding velocities where other metals would gall.
- Good thermal conductivity: rapidly dissipates heat away from the critical contact patch to the housing.
Centrifugal Casting vs. Sand Casting: Does It Matter?
The method of manufacturing the raw bronze blank is just as critical as the chemical composition. At Yantong Tech, we prefer centrifugal casting for our bronze rims. In this process, molten bronze is poured into a spinning die. The g-force pushes the pure metal to the outside (where the gear teeth will be cut) and forces impurities and porosity to the center (which is machined away). Sand casting, while cheaper, often results in air pockets or “porosity” in the gear teeth.
Key Takeaway: Phosphor bronze (specifically CuSn10P1 or CuSn12) provides the safest bet for continuous, high-speed sliding contact without seizing.
Engineering Insight Module: The Yantong Standard: Grain Structure Integrity
Why Grain Density Matters
In cheap worm wheels, you might see “pitting” on the gear flank after only a few months. This is often not due to overload, but due to loose grain structure in the casting. If the metal crystals are not packed tightly, the surface fatigues and flakes off under repeated sliding pressure.
At Yantong Tech, we verify material composition using spectrometry before a single chip is cut. We look for a dense, uniform grain structure that can support the hydrodynamic oil film. If the bronze is porous, the oil film breaks, and metal-to-metal contact begins. We don’t just sell bronze; we sell structural integrity.
Analysis: You now understand the industry standard; next, we look at materials for extreme conditions.
4. Aluminum Bronze: When Durability Factors Outweigh Speed
There are specific scenarios where phosphor bronze simply isn’t strong enough. When shock loads increase significantly and operating speeds decrease, phosphor bronze may deform plastically under the pressure. In these heavy-duty, low-speed situations, Aluminum Bronze steps in as the high-strength alternative.
Can Aluminum Bronze Handle Higher Torque?
Aluminum Bronze (such as CuAl10Fe) is an alloy that bridges the gap between bronze and steel. It possesses a much higher yield strength than phosphor bronze, allowing it to transmit significantly more torque without tooth deformation.
But there is a catch.
You cannot simply swap phosphor for aluminum bronze in every application. You gain strength, but you lose lubricity. Aluminum Bronze offers:
- Significantly higher load-bearing capacity: Ideal for winches, heavy lifts, or slow-moving actuators.
- Excellent corrosion resistance: Superior performance in saltwater/marine environments (often used in shipboard equipment).
- Higher coefficient of friction: It does not slide as easily as phosphor bronze, meaning it generates more heat and requires better lubrication.
The Risk of Scoring the Steel Worm
Because Aluminum Bronze is harder, it is much more aggressive toward the mating worm shaft. If used in a high-speed application (e.g., > 1500 RPM input), the heat generation will be immense, and the hard bronze can score or wear down the steel shaft—reversing the “sacrificial” logic.
Key Takeaway: Use Aluminum Bronze for heavy lifting, intermittent use, or slow speeds, but never for high-speed continuous drives where heat generation is a killer.
| Alloy Type | Tensile Strength (Approx) | Friction Coefficient | Best For |
|---|---|---|---|
| Phosphor Bronze (CuSn12) | 300-350 MPa | Low | High speed, continuous duty, general automation. |
| Aluminum Bronze (CuAl10Fe) | 600-700 MPa | Medium-High | Low speed, high torque, shock loads, marine. |
| Leaded Bronze | 200-250 MPa | Very Low | Very high speed, lower loads (rare in modern power trans). |
Analysis: We have covered high speed and high load; now we examine economy options that often trap unwary buyers.
5. Cast Iron: Economy Material or Engineering Mistake?
You will often find cast iron worm wheels in budget machinery, agricultural equipment, or manual hand-crank systems. Cast iron is cheap and easy to machine, but in the context of precision power transmission, it comes with severe performance limitations that you need to be aware of.
Is Grey Cast Iron Ever Acceptable for Power Transmission?
Grey cast iron is brittle. While it has some graphite flakes that offer minor self-lubricating properties, it creates a poor friction pair with steel compared to bronze. It lacks the malleability to “bed in” effectively without damaging the shaft.
Look at the evidence.
When you choose cast iron for a worm wheel, you are accepting significant risks:
- High risk of fracture: Under shock loads, iron teeth are likely to snap off rather than deform.
- Poor heat dissipation: Iron does not conduct heat as well as copper-based alloys, leading to hotter oil and rapid degradation of seals.
- Only suitable for very low sliding speeds: Generally restricted to speeds under 2m/s. Above this, galling is almost guaranteed.
Ductile Iron vs. Grey Iron in Gearbox Applications
If you must use iron, Nodular (Ductile) Iron is the superior choice over Grey Iron. It has spherical graphite nodules that make it less brittle and more impact-resistant. However, even Ductile Iron cannot match the low-friction sliding properties of bronze. It is purely a cost-saving measure, not a performance upgrade.
Key Takeaway: Cast iron saves money upfront but drastically increases Lifecycle Costs (LCC) due to frequent replacement requirements and potential damage to the worm shaft.
Engineering Insight Module: The False Economy of Cheap Iron
The $50 Saving that Cost $5,000
We recently consulted for a client using a conveyor system for heavy aggregates. They switched their worm wheels from CuSn12 Bronze to Ductile Iron to save roughly $50 per unit.
The result? The iron gears couldn’t dissipate the friction heat generated at 1400 RPM. The gearbox oil overheated, seals failed, and the gearbox seized mid-shift. The line was down for 6 hours. The cost of lost production exceeded $5,000.
Lesson: Never downgrade material properties to save on procurement costs unless the application parameters (speed/load) are also reduced. Cheap iron is expensive in the long run.
Analysis: Moving away from heavy metals, we look at the modern shift toward lightweight materials for specific niches.
6. Plastics and Synthetics in Modern Worm Gear Materials
In industries like food processing, medical devices, and packaging, traditional lubrication is a liability. Oil leaks can contaminate products. This is where non-metallic, synthetic gears are gaining ground. They offer a completely different set of pros and cons compared to their metal counterparts.
How Do Nylon and Acetal Gears Perform?
Engineering plastics like Nylon 6.6, Acetal (Delrin), and PEEK are valued for their ability to run dry or with minimal lubrication. They are also naturally dampening, making them significantly quieter than metal gears.
Here is the trade-off.
While excellent for specific environments, plastics are not “power” materials. They offer:
- Zero corrosion issues: They are washdown ready and impervious to water and most chemicals.
- Significant reduction in operational noise (dB): Ideal for hospitals or office environments.
- Drastically lower torque capacity and thermal limits: Plastic acts as an insulator, meaning heat stays in the tooth rather than dissipating, leading to melting if pushed too hard.
Managing Thermal Expansion in Plastic Gears
One factor engineers frequently overlook is dimensional stability. Plastics absorb moisture (hygroscopy) and expand significantly with heat. A nylon gear might swell enough to eliminate the backlash (clearance) in the gear mesh, causing the gearbox to bind and lock up.
Key Takeaway: Plastic works for conveyance and positioning but fails in power transmission roles; moisture absorption can lock up a gearbox if tolerances are too tight.
| Material | Noise Level | Lubrication Need | Max Temp (Continuous) | Main Limitation |
|---|---|---|---|---|
| Nylon 6.6 | Very Low | None/Low | ~100°C | Absorbs moisture, swells, loses dimensions. |
| PEEK | Low | None | ~250°C | Extremely expensive, brittle under shock. |
| Acetal (Delrin) | Low | None | ~85°C | Poor resistance to acids, lower temp limit. |
| Tufnol (Composite) | Medium | Water/Oil | ~120°C | Delamination risk if overloaded. |
Analysis: Materials are only half the story; the final section explains how we ensure these materials actually perform.
7. Heat Treatment and Mating: The Hidden Durability Factors
You can select the highest grade 20CrMnTi steel available, but if the heat treatment process is shallow or uncontrolled, the gear will fail. The metallurgy must extend below the surface to support the stresses of operation. This process is the “secret sauce” of durability.
Why Carburizing Depth Matters More Than Surface Hardness
Hardness is not just skin deep. We talk about “Case Depth” (or Effective Case Depth)—the thickness of the hardened layer. If this shell is too thin (e.g., 0.2mm), the heavy load of the worm wheel will crush the “eggshell” surface into the softer core, leading to immediate surface failure.
This is what separates quality from scrap.
A proper heat treatment cycle involves:
- Effective case depth: typically 0.8mm – 1.2mm for industrial worm shafts, ensuring the hard layer is thick enough to support the contact load.
- Control of distortion during quenching: Steel warps when cooled rapidly. Precision fixturing is required to minimize runout.
- Sandblasting and shot peening: Post-treatment processes to clean the surface and induce compressive stresses that prevent crack initiation.
The Importance of Traceability in Material Science
At Yantong Tech, we believe in data. When we supply a hardened worm shaft, we can provide the heat treatment curves and material certificates. We track the time, temperature, and carbon potential during the furnace cycle.
Key Takeaway: Requesting the heat treatment report is as important as specifying the material grade. Without proof, “hardened steel” is just a claim.
Engineering Insight Module: Reading the Yantong Heat Treatment Report
Verify Before You Install
When you receive a batch of worm shafts, how do you know they will last 10,000 hours? You look at the Heat Treatment Report.
You should check three critical parameters:
- Surface Hardness: Is it HRC 58-62?
- Effective Case Depth: Is it deeper than 0.8mm (depending on module)?
- Metallographic Structure: Are there excessive carbides or retained austenite?
If your supplier cannot provide this data, you are flying blind. At Yantong, this transparency is standard procedure.
Analysis: You now possess the full picture of material selection, from raw alloy to finished, hardened component.
8. Conclusion
The longevity of your worm gear drive is decided long before the machine is turned on—it is decided at the drawing board. We have explored the hierarchy of materials: Hardened Alloy Steel (20CrMnTi) is the undisputed king for the worm shaft. Phosphor Bronze (CuSn12) remains the universal standard for the wheel due to its balance of lubricity and strength, while Aluminum Bronze handles the heavy, slow loads, and Plastics solve specific environmental challenges.
The final advice is simple: Don’t over-engineer by specifying exotic PEEK plastics where simple Nylon works, but never under-engineer by using Cast Iron where Bronze is tribologically required.
Reliable transmission isn’t about luck; it’s about precision. At Yantong Tech, we are more than just a manufacturer; we are your engineering partner for reliable, custom transmission components built on truth and technical precision. Do not let material failure compromise your reputation. Send us your drawing today for a transparent technical review and let us help you engineer a drive that lasts.
9. FAQ
- Can I replace a bronze worm wheel with a steel one to make it last longer?
No. If you run a steel worm shaft against a steel worm wheel, you will likely cause rapid seizing. The friction generates immense heat, causing the metals to gall and essentially weld together. You need a dissimilarity in materials (Hard/Soft) to prevent this. - Why does my worm gear overheat even with the right oil?
Overheating is often a symptom of tight mesh or incorrect material pairing. If the backlash (clearance) is too tight, there is no room for the oil film. Additionally, if you are using Aluminum Bronze at high speeds, the friction coefficient is too high, generating heat faster than the gearbox can dissipate it. - Is 20CrMnTi better than 40Cr for worm shafts?
Yes, for heavy-duty applications. 20CrMnTi is a low-carbon alloy designed for carburizing, allowing it to achieve a very hard surface (HRC 60) with a tough core. 40Cr is typically induction hardened or through-hardened, which often results in a lower surface hardness or a more brittle core, making it less durable for high-torque worms. - How do I know if I need aluminum bronze or phosphor bronze?
Look at the speed vs. load curve. If your application runs continuously at high speeds (e.g., conveyors, mixers), use Phosphor Bronze for its self-lubricating properties. If your application is slow-moving but carries massive loads (e.g., heavy winches, lift gates), Aluminum Bronze is better due to its higher yield strength.
