Imagine you are in the middle of a critical turning operation on an industrial lathe, but the feed mechanism starts shuddering, leaving chatter marks on a high-value workpiece. This vibration isn’t just annoying; it represents costly scrap, unplanned machine downtime, and inconsistent tolerance adherence that threatens your production schedule. The root cause often lies in transmission quality; upgrading to high-precision lathe worm gears ensures the smooth, torque-rich power delivery required for flawless surface finishes. As a “Reliable Industrial Transmission Partner,” Yantong Tech eliminates these variables by delivering ISO Grade 6 precision gears, focusing on equipment lifecycle costs rather than just component price.
The Primary Purpose of the Lathe Worm Gear
How does it control feed rates?

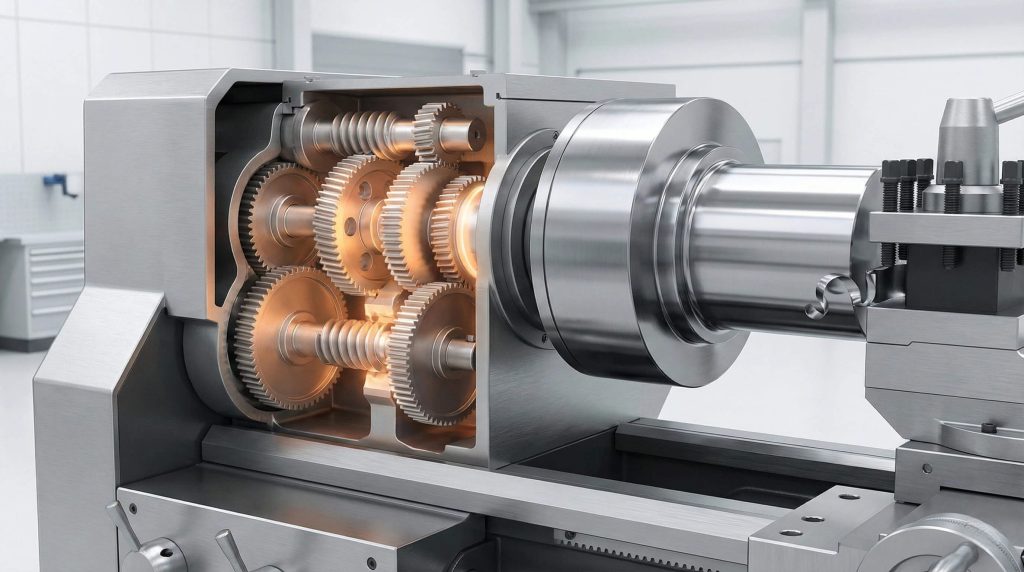

You rely on the apron gearbox to convert the lead screw’s rotation into linear movement, requiring precise speed reduction.
Here’s the deal:
A worm gear set dramatically reduces high input speeds to manageable feed rates, giving you granular control over the carriage.
- Reduces motor RPM significantly.
- Provides consistent linear travel.
- Essential for fine surface finishing.
Why is torque multiplication crucial?
When you take deep cuts in hardened steel, the cutting tool experiences immense resistance that standard gears might not overcome.
Think about this:
The mechanical advantage of the worm design acts as a force multiplier, ensuring the carriage continues moving steadily despite heavy cutting loads.
- Multiplies input torque.
- Prevents carriage stalling.
- Stabilizes heavy-duty roughing cycles.
Key Takeaway: Lathe Worm Gear Functionality
The core function of the lathe worm gear is to convert high-speed rotational energy into high-torque, low-speed linear stability. Without this conversion, maintaining consistent chip load during heavy turning operations is mechanically impossible.
| Parameter | Standard Spec | Yantong Standard |
|---|---|---|
| Transmission Type | Sliding Contact | Optimized Sliding |
| Reduction Ratio | 10:1 to 100:1 | Custom (Precise Match) |
| Torque Output | Moderate | High (Grade 6 Profile) |
Analysis: High torque multiplication allows the lathe to maintain consistent feed rates under variable load conditions.
Mechanics Behind a Functional Lathe Worm Gear
How do sliding contacts create motion?
Unlike spur gears that roll, the worm shaft slides across the wheel teeth, creating a unique transmission dynamic you must manage.
Consider this:
This sliding action provides smooth power but requires perfect geometric mating to prevent rapid wear or seizing.
- Continuous sliding friction.
- Silent operation potential.
- Requires lubrication film.
Why does the contact spot matter?
If you ignore the contact pattern (bearing spot), you risk localized overheating and premature failure of the gear set.
Listen closely:
Yantong Tech prioritizes controlling the contact spot to ensure loads are distributed evenly across the gear tooth flank.
- Prevents point-loading.
- Reduces localized heat.
- Extends component life.
Key Takeaway: Lathe Worm Gear Mechanics
The mechanics of a lathe worm gear rely heavily on sliding friction and contact geometry. Precision manufacturing that optimizes the contact spot is the only way to mitigate the heat generation inherent in this mechanical design.
| Feature | Description | Impact on Lathe |
|---|---|---|
| Motion Type | Sliding | Smooth surface finish |
| Contact Spot | Center-weighted | High load capacity |
| Yantong Precision | ISO Grade 6 | Low transmission error |
Analysis: Proper contact spot management is the single most critical factor in preventing premature wear in sliding gear mechanics.
Material Selection for Durable Lathe Worm Gears

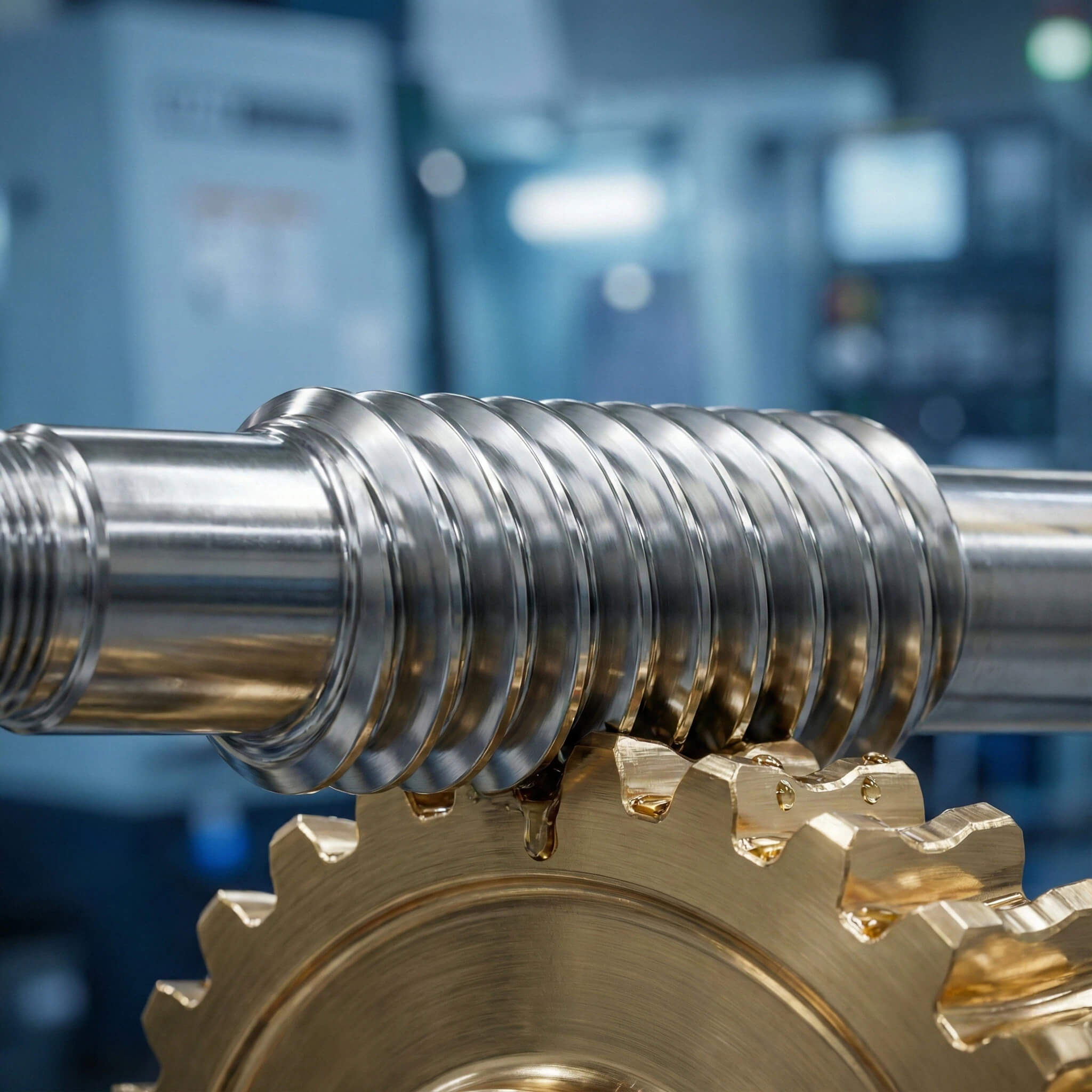

Why pair hard steel with bronze?
You never want two identical metals grinding against each other because they will gall and seize under the heat of friction.
Here is why:
We pair a hardened steel worm shaft with a softer bronze wheel to provide a sacrificial surface that lowers friction coefficients.
- Prevents cold welding.
- Lowers friction coefficient.
- Sacrificial wear component.
How does heat treatment help?
If you use untreated steel for the worm shaft, the constant abrasion will destroy the profile accuracy within weeks.
Bottom line:
Carburizing or nitriding the shaft to 58–62 HRC ensures it can withstand the rigorous sliding contact without deforming.
- Increases surface hardness.
- Retains core toughness.
- Resists abrasive wear.
Key Takeaway: Lathe Worm Gear Durability
Material science dictates the longevity of the gear set; the “Hard Shaft / Soft Wheel” principle is non-negotiable for industrial lathes. Using automotive-grade heat treatment processes ensures the steel shaft outlasts the service life of the machine.
| Component | Material | Treatment/Hardness |
|---|---|---|
| Worm Shaft | 20CrMnTi Steel | Carburized (58-62 HRC) |
| Worm Wheel | Bronze Alloy | Centrifugal Casting |
| Alternative | Cast Iron | Induction Hardened |
Analysis: The dissimilar material pairing creates a low-friction interface that is essential for the longevity of sliding transmission systems.
Pros of Using a Lathe Worm Gear Configuration
How does self-locking add safety?
When you stop the feed motor, you need the carriage to stay exactly where it is without back-driving from cutting forces.
Ideally:
The friction in the lathe worm gear prevents the wheel from driving the worm, acting as an automatic brake for the carriage.
- Prevents tool creep.
- Enhances operator safety.
- Resists back-driving.
Can high ratios save space?
You can achieve massive speed reductions in a single stage without needing a bulky, multi-gear train gearbox.
Space saver:
This compactness allows lathe designers to keep the apron gearbox small, maximizing the swing over the bed.
- Compact envelope.
- High ratio (up to 100:1).
- Simplifies gearbox design.
Key Takeaway: Lathe Worm Gear Advantages
The primary advantages of the lathe worm gear are its compact ability to handle high reduction ratios and its safety-enhancing self-locking properties. These features allow for streamlined apron designs that do not sacrifice torque or safety.
| Pro Factor | Benefit | Application Relevance |
|---|---|---|
| High Reduction | Compactness | Fits inside lathe apron |
| Self-Locking | Safety | Holds carriage position |
| Shock Loading | Durability | Absorbs interrupted cuts |
Analysis: The compact nature of high-ratio worm gears enables complex feed mechanisms to fit within the constrained space of a lathe apron.
Cons and Limitations of the Lathe Worm Gear
Why is efficiency often lower?
You must accept that the sliding action generates significant friction, which translates directly into energy loss as heat.
The reality:
Compared to the 98% efficiency of spur gears, a worm set might only deliver 50-80% efficiency depending on the ratio.
- High friction losses.
- Requires more input power.
- Generates system heat.
Is wear a major issue?
You will eventually have to replace the bronze wheel because it functions as a sacrificial fuse for the system.
Maintenance truth:
While the steel shaft lasts, the constant sliding erodes the bronze teeth, eventually increasing backlash to unacceptable levels.
- Sacrificial bronze wear.
- Increased backlash over time.
- Periodic replacement needed.
Key Takeaway: Lathe Worm Gear Limitations
The physical trade-off for high torque and smooth motion is lower mechanical efficiency and heat generation. Users must mitigate these cons through rigorous lubrication schedules and by accepting the bronze wheel as a consumable maintenance item.
| Limitation | Cause | Mitigation Strategy |
|---|---|---|
| Heat | Sliding Friction | High-quality EP Oil |
| Efficiency | Geometric Drag | Precision Contact Spots |
| Wear | Soft Material | Periodic Backlash Checks |
Analysis: While efficiency losses are unavoidable, precise manufacturing minimizes friction, thereby maximizing the operational efficiency available within the design constraints.
Manufacturing Precision in Lathe Worm Gear Sets
How precise is ISO Grade 6 grinding?
You cannot achieve a mirror finish on your parts if your lathe’s internal gears have transmission errors.
Precision matters:
Yantong Tech grinds worms to ISO Grade 6 to ensure velocity consistency, eliminating the “ripple” effect on your turned parts.
- Micro-level accuracy.
- Consistent velocity transmission.
- Eliminates feed chatter.
Why measure backlash so strictly?
If you have “slop” in your handwheel before the carriage moves, accurate positioning becomes a guessing game.
The fix:
Strict backlash control ensures that every degree of handwheel rotation translates to immediate, predictable linear movement.
- Immediate engagement.
- Accurate positioning.
- Reduced “dead zone.”
Key Takeaway: Lathe Worm Gear Precision
Precision manufacturing is not a luxury; it is a requirement for preventing transmission error. Yantong Tech’s adherence to ISO Grade 6 grinding standards ensures that the lathe worm gear does not introduce vibration into the machining process.
| Metric | Standard Market Grade | Yantong Grade |
|---|---|---|
| Profile Accuracy | ISO 9-10 | ISO 6 (Ground) |
| Surface Finish | Milled | Ground & Polished |
| Testing Method | Visual | Double Flank Roll Test |
Analysis: The correlation between gear precision (ISO Grade) and workpiece surface finish is direct; higher precision gears yield smoother turned parts.
Maintenance and Wear in Lathe Worm Gear Units
How do I detect gear wear early?
You will likely hear the problem before you see it, usually as a clicking sound or increased “hum” under load.
Listen up:
An increase in backlash—the free play in the handwheel—is the definitive physical symptom that the bronze teeth are thinning.
- Audible clicking/humming.
- Excessive handwheel play.
- Inconsistent feed rates.
What lubrication works best?
If you use standard motor oil, you will destroy the bronze wheel because it attacks copper-based alloys or fails under pressure.
Lubrication tip:
Always use Compounded Gear Oils or EP (Extreme Pressure) lubricants specifically designed for yellow metal compatibility.
- Yellow metal safe.
- High viscosity needed.
- EP additives required.
Key Takeaway: Lathe Worm Gear Maintenance
Proactive maintenance involves monitoring backlash and using the correct lubricant chemistry. Using the wrong oil is the fastest way to corrode the bronze wheel of a lathe worm gear, regardless of manufacturing quality.
| Maintenance Item | Frequency | Action |
|---|---|---|
| Lubrication | Daily/Weekly | Check Level & Type |
| Backlash | Monthly | Measure Free Play |
| Visual Insp. | Annually | Check Tooth Profile |
Analysis: Lubricant compatibility (specifically regarding copper corrosion) is the most overlooked aspect of worm gear maintenance.
Customizing Your Lathe Worm Gear Replacement
Can I reverse engineer old gears?
When your 1980s industrial lathe breaks down, you will likely find the OEM is long gone or parts are obsolete.
The rescue:
Yantong Tech specializes in reverse engineering, mapping your worn part to create a brand-new, specification-exact replacement.
- Digital scanning.
- Material identification.
- Parameter reconstruction.
Why choose custom over OEM parts?
You might find that the original parts had design flaws or used inferior materials that led to the failure in the first place.
Upgrade path:
Custom manufacturing allows you to upgrade the steel grade or heat treatment, actually improving the machine beyond its original factory specs.
- Material upgrades.
- Hardness improvements.
- Geometry optimization.
Key Takeaway: Lathe Worm Gear Customization
For legacy equipment, custom reverse engineering is often the only viable solution. Yantong Tech transforms this necessity into an advantage by upgrading materials and precision levels during the reproduction process.
| Feature | OEM Part | Yantong Custom Part |
|---|---|---|
| Availability | Often Obsolete | Made to Order |
| Material | Standard Spec | Optimized Spec |
| Traceability | Unknown | Full Raw Material Trace |
Analysis: Reverse engineering offers a dual benefit: restoring machine function and potentially upgrading the component’s durability through modern material science.
Conclusion
Lathe worm gears are the silent workhorses of precision turning, but their failure leads to immediate production stoppages and quality loss. The “chatter” on your workpiece is often a symptom of transmission neglect. Yantong Tech doesn’t just sell gears; we provide stability. By adhering to ISO Grade 6 precision, employing rigorous heat treatment, and offering full traceability, we ensure your transmission components contribute to lower Lifecycle Costs (LCC). As your Reliable Industrial Transmission Partner, we bridge the gap between complex engineering requirements and reliable manufacturing execution, keeping your spindles turning with confidence.
FAQ: Lathe Worm Gears
- Can I use standard automotive grease for my lathe worm gears?
Judgment: No, this is a primary cause of failure.
Reason: Standard greases often lack the “Extreme Pressure” (EP) additives required for sliding contact, and some contain sulfur that actively corrodes the bronze worm wheel. - What is the best material combination for a replacement gear set?
Judgment: Case-hardened steel for the worm and tin-bronze for the wheel.
Reason: This specific pairing (like 20CrMnTi steel with CuSn12 bronze) offers the optimal balance of friction reduction and wear resistance, preventing the gears from seizing. - How do I know if my lathe worm gear is the cause of my surface finish issues?
Judgment: Check for inconsistent feed patterns or audible vibration in the apron.
Reason: If the worm gear has excessive backlash or worn teeth, the carriage movement becomes jerky (stick-slip), which physically manifests as “chatter” or ripples on the turned part. - Can I replace just the worm shaft and keep the old wheel?
Judgment: It is strongly advised to replace them as a matched set.
Reason: The old wheel has worn into a specific pattern; introducing a new shaft with a perfect profile will create high-stress contact points, leading to rapid failure of the new component. - How do I know if a custom gear manufacturer is reliable?
Judgment: Look for traceability and specific grinding capabilities (ISO Grade 6).
Reason: Reliable partners like Yantong Tech provide raw material certificates and heat treatment reports, proving they prioritize internal structural integrity over just external appearance.
