You are engineering a heavy-duty lifting mechanism or a precision packaging line, expecting smooth, quiet transmission, but suddenly the gearbox overheats or you detect premature pitting. The downtime costs are staggering, and the pressure is on to find a permanent fix. Here is the deal: true reliability requires matching the right metallurgy to your specific duty cycle, and Yantong Tech combines 15 years of manufacturing data with honest engineering to ensure your worm gears withstand real-world friction.
1. What defines basic worm gear material selection?
Understanding Throat Geometry Configurations
The configuration of your gear set dictates the stress it can handle, and we typically encounter three main design types. You might be wondering, does the shape really change the metal requirements?
- Non-throated: Simple helical gears with point contact.
- Single-throated: Wheel wraps around the worm for line contact.
- Double-throated: Both elements wrap for maximum area contact.
Impact of Contact Area on Heat
A double-throated design increases the contact area, which reduces unit pressure but traps significantly more heat. This specific geometry demands a bronze alloy with superior thermal conductivity to prevent failure. If you put a basic cast iron wheel in a high-speed double-throated application, it will fail rapidly due to thermal buildup.
Geometry and Material Stress Summary
At Yantong Tech, we analyze your input speed before suggesting metals to ensure the geometry aids performance rather than hindering it.
| Gear Type | Contact Area | Material Stress Level |
|---|---|---|
| Non-Throated | Point Contact | High (Point Load) |
| Single-Throated | Line Contact | Medium (Distributed) |
| Double-Throated | Area Contact | High (Thermal Build-up) |
Double-throated gears require alloys with the highest thermal conductivity ratings to manage the increased heat retention.
2. Why is accurate worm gear material selection vital?
The Danger of Sliding Friction
Worm gears operate primarily through sliding friction rather than rolling contact, which generates significant heat during operation. But here is the kicker: if you select the wrong material pair, you get “scoring,” where the metal literally welds together and tears apart.
- Friction: The number one efficiency killer.
- Scoring: Metal-to-metal welding.
- Dissipation: Critical need for heat transfer.
Managing Thermal Expansion
You generally need a hard worm shaft paired with a softer, conformable wheel to manage this friction effectively. Bronze expands differently than steel, so if your operational temperature rises too high, clearances vanish and the gearbox seizes. Ignoring thermal ratings during the material specification phase causes nearly 60% of the failures we investigate.
Failure Modes Prevention
You need a material pair with a low coefficient of friction to prevent disaster.
| Failure Type | Root Cause | Prevention Strategy |
|---|---|---|
| Scoring | Dissimilar metal welding | Use Bronze vs. Hardened Steel |

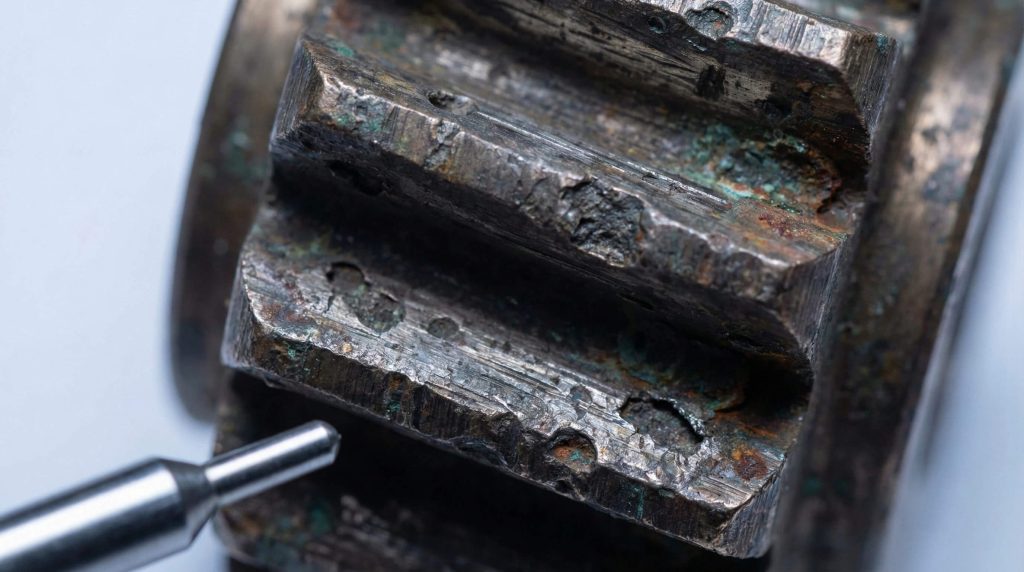

| Pitting | Surface fatigue | Increase Wheel Yield Strength |
| Spalling | Case crushing | Deepen Case Hardening Depth |
Steel-on-steel combinations must be avoided entirely as they lack the conformability required to prevent immediate scoring.
3. How does steel aid worm gear material selection?

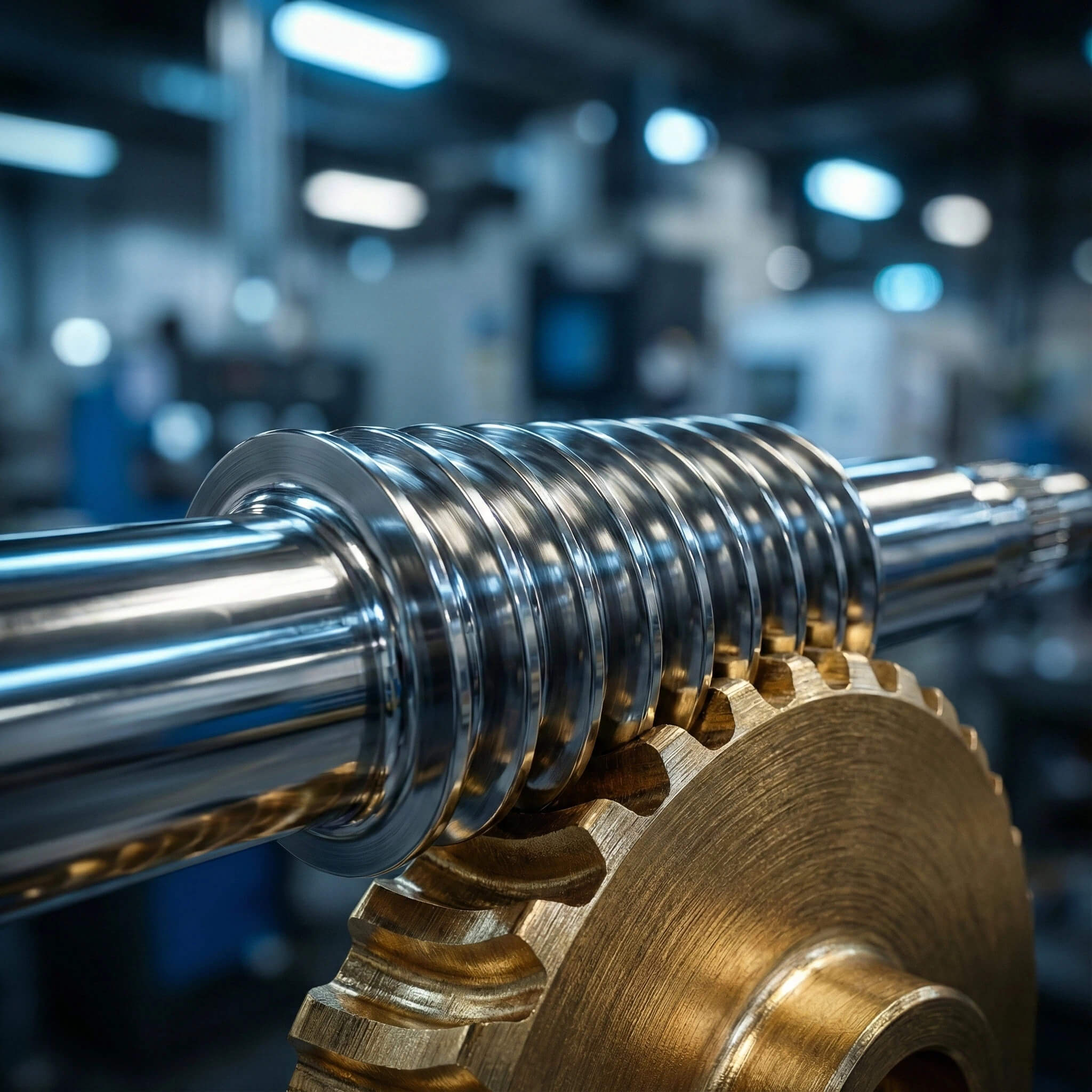

The Role of the Worm Shaft
The worm shaft endures the most punishment, acting as the driver that must resist high surface wear while maintaining core toughness. Let’s face it, a soft shaft will be destroyed by the wheel instantly, so we compare specific steel grades.
- 20CrMnTi: Case hardened for heavy duty.
- 42CrMo4: Through hardened for medium duty.
- SS316: Soft, high risk of failure.
Achieving the Mirror Finish
Hardness is not enough; you must ensure the surface finish is mirror-like to prevent the shaft from acting like a file against the bronze wheel. We use CNC grinding to achieve ISO Grade 6 precision, ensuring the shaft glides rather than grinds. Rough steel surfaces will aggressively wear down the softer bronze component regardless of lubrication.
Shaft Material Comparison
We carburize 20CrMnTi to achieve a surface hardness of 58-62 HRC for maximum durability.
| Material Grade | Heat Treatment | Typical Hardness HRC |
|---|---|---|
| 20CrMnTi | Carburizing | 58–62 HRC |
| 42CrMo4 | Induction / Nitriding | 50–55 HRC |
| SS316 | None / Coating | < 30 HRC (Risk High) |
The hardness gap between the shaft and wheel determines the lifespan of the entire transmission system.
4. Why is bronze key in worm gear material selection?
The Sacrificial Element
The worm wheel acts as the “sacrificial” element and must be softer than the shaft to prevent catastrophic seizing. Think about it: steel-on-steel would weld together under this sliding load, so you need bronze for lubricity.
- Phosphor Bronze (CuSn12): Best for high speeds.
- Aluminum Bronze: Best for high loads.
- Centrifugal Casting: Essential for density.
Importance of Casting Method
Crucially, Yantong Tech uses Centrifugal Casting for our wheels because static sand casting often leaves invisible porosity voids. Centrifugal casting densifies the grain structure, ensuring the teeth do not snap under load. Using inferior casting methods is a primary cause of unexpected tooth breakage.
Bronze Alloy Selection
You must choose the alloy based on whether speed or load is your primary constraint.
| Bronze Type | Primary Benefit | Ideal Application |
|---|---|---|
| Phosphor Bronze | Anti-friction | High sliding speeds |
| Aluminum Bronze | High Strength | Low speed, heavy load |
| Sand Cast Bronze | Low Cost | Non-critical manual drives |
Phosphor bronze is the industry gold standard for high-speed applications due to its superior anti-friction properties.
5. Does load factor into worm gear material selection?
Calculating for Shock Loads
If your equipment faces heavy shock loads, like a rock crusher, standard bronze might deform rapidly under the stress. Here is the bottom line: don’t guess; calculate the service factor first and shift materials if necessary.
- High Shock: Requires Nickel-Bronze.
- Uniform Load: Standard Phosphor Bronze.
- Manual Load: Cast Iron is acceptable.
The Risks of Cast Iron
We only recommend Cast Iron for manual drives or very slow, intermittent applications where heat generation is negligible. Using iron at high RPM guarantees noise and rapid wear, creating an unreliable system. Always match the yield strength of the alloy to your calculated shock load plus a safety margin.
Load Class Recommendations
For extreme loads, we shift to Nickel-Bronze or high-tensile brass to prevent deformation.
| Load Type | Recommended Wheel Material | Risk Factor |
|---|---|---|
| Uniform / High Speed | Centrifugal Phosphor Bronze | Low |
| Heavy Shock | Aluminum / Nickel Bronze | Medium (Heat check) |
| Manual / Low Speed | Cast Iron | High (if speed increases) |
Ignoring service factors and using standard bronze for shock-load applications leads to immediate plastic deformation.
6. Is lubrication part of worm gear material selection?
Chemical Compatibility
You cannot separate the metal from the oil because some extreme pressure additives contain active sulfur. It gets better: while proper oil extends fatigue life, sulfur attacks yellow metals like bronze, causing corrosion.
- PAG Oil: Excellent thermal stability.
- Active Sulfur: Corrodes bronze gears.
- Synthetic: Lowers friction coefficient.
Preventing Yellow Metal Corrosion
We recommend Polyglycol (PAG) synthetic oils for most worm gears due to their low coefficient of friction and thermal stability. However, you must ensure the bronze alloy you choose is compatible with the additive package. Yantong engineers review lubricant compatibility during the design phase to prevent silent chemical erosion.
Lubricant and Material Pairing
“Yellow Metal Corrosion” can eat away your gear teeth silently until catastrophic failure occurs.
| Lubricant Base | Friction Coefficient | Material Risk |
|---|---|---|
| Mineral Oil | High | Low |
| PAG Synthetic | Lowest | Check Seal Compatibility |
| EP Additives | Medium | High (Sulfur attacks Bronze) |
Always verify that your EP additives are deactivated or non-corrosive to copper-based alloys before filling the gearbox.
7. Does heat treat affect worm gear material selection?
Balancing the Hardened Case
Selecting the steel is step one, but treating it correctly is the critical step two. Ready for the truth? If the case is too thin, the contact pressure will crack the hardened shell, ruining the gear immediately.
- Carburizing: Deepest case for durability.
- Nitriding: Low distortion for precision.
- Induction: Cost-effective for medium loads.
Matching Hardness Depth to Module
The Effective Hardening Depth (EHD) must match the tooth module to withstand the contact pressure. Yantong possesses in-house capabilities to verify the microstructure post-treatment, ensuring the hardness curve is consistent from the tip to the root. A shallow case depth leads to surface crushing and spalling.
Heat Treatment Methods
We often use Carburizing for maximum durability in heavy-duty industrial applications.
| Method | Goal | Typical Depth |
|---|---|---|
| Carburizing | Max Wear Resistance | 0.8mm – 1.5mm |
| Nitriding | High Precision | 0.3mm – 0.6mm |
| Through Hardening | Core Strength | Full section |
Carburizing provides the tough “skin” needed to resist wear while leaving a ductile core to absorb shock loads.
8. What errors plague worm gear material selection?
Ignoring the Duty Cycle
The most common mistake engineers make is picking “Catalog Standard” materials for machines that stop and start frequently. Don’t make this mistake: ignoring thermal limits causes material softening and premature failure.
- Start/Stop: Causes thermal spiking.
- Continuous: Requires high thermal dissipation.
- Standard Spec: Often insufficient for custom cycles.
Hardness Mismatch Issues
Another frequent error is hardness mismatch, where the shaft is not significantly harder than the wheel. We see clients trying to use stainless steel shafts with bronze wheels for food safety, resulting in immediate galling. In these cases, we advise using specialized hardened stainless grades or coatings to maintain that hardness differential.
Common Selection Mistakes
The shaft must be significantly harder than the wheel, typically by greater than 15 HRC.
| Error | Consequence | Correction |
|---|---|---|
| Hardness Mismatch | Galling / Seizing | Ensure Shaft > Wheel by 15 HRC |
| Wrong Bronze Type | Tooth Breakage | Use Centrifugal Cast Bronze |
| High Sulfur Oil | Chemical Corrosion | Switch to PAG Synthetic |
A hardness differential of less than 10-15 HRC guarantees that the worm shaft will degrade the wheel surface rapidly.
9. Who aids your final worm gear material selection?
Partnering for Reliability
You need a partner who understands the factory floor realities, not just someone reading a catalog. You deserve better than a supplier who just says “yes” to bad drawings without asking critical engineering questions.
- Traceability: Material certs included.
- Analysis: Heat treat reports provided.
- Consultation: Engineer-to-engineer dialogue.
Focus on Life Cycle Cost
We focus on Life Cycle Cost (LCC) because a slightly more expensive, well-matched gear set prevents thousands of dollars in downtime. Our “Engineer-to-Engineer” communication ensures we understand your application before we cut a single tooth. Yantong Tech is a 96-person factory focused strictly on engineering excellence.
Yantong Service Capabilities
We provide full traceability with Material Certs and Heat Treat Reports coming with every batch.
| Service | Benefit to You | Deliverable |
|---|---|---|
| Material Analysis | Verifies composition | Mill Test Certs |
| Heat Treat Check | Proves durability | Hardness Reports |
| Failure Analysis | Prevents recurrence | Engineering Report |
Transparent reporting and full material traceability are the only ways to guarantee the long-term safety of your lifting mechanisms.
Conclusion
We have explored how geometry, friction, and heat treatment define the success of your worm gear material selection. Don’t gamble with generic specs; the right pairing of Case-Hardened Steel and Centrifugal Bronze is the difference between a 5-year lifespan and a 5-month failure. Stop settling for vague metal specs. Contact Yantong Tech today for a Free Material Compatibility Review of your current drawings. Let’s build transmission systems that are as reliable as your reputation.
FAQ
Q1: Can I use stainless steel for the worm shaft?
Yes, but with caution. Standard 304/316 is too soft and will gall against bronze; you must use specialized hardenable stainless grades or coatings.
Q2: Why is centrifugal casting better for worm wheels?
It is structurally superior. The centrifugal force eliminates air pockets and densifies the grain structure, significantly increasing tooth strength compared to sand casting.
Q3: How do I know if I need 20CrMnTi or 40Cr steel?
Look at your load requirements. 20CrMnTi (Carburized) offers a harder surface for heavy wear, while 40Cr (Induction) is sufficient for medium loads and lower costs.
Q4: Does Yantong Tech provide heat treatment reports?
Absolutely, for every batch. We believe traceability is safety; you need to prove the hardness depth matches the engineering specs to ensure longevity.
Q5: Can you reverse engineer a broken gear to improve it?
Yes, this is a core service. We analyze the failure mode of the old material and recommend an upgraded alloy or heat treatment to prevent recurrence.
