Imagine your heavy-duty conveyor grinds to a halt at 2 AM because a critical gear tooth sheared off. Production stops, costs skyrocket, and your client is screaming for answers about why a “durable” component failed so fast. Here is the harsh reality. Most premature failures stem from ignoring the intricate science of worm gear material selection, leading to inefficiency and catastrophic breakdowns. This guide puts you back in control, offering Yantong Tech’s proven expertise to balance durability, efficiency, and cost for total peace of mind.
1. Why Is Worm Gear Material Selection Critical?

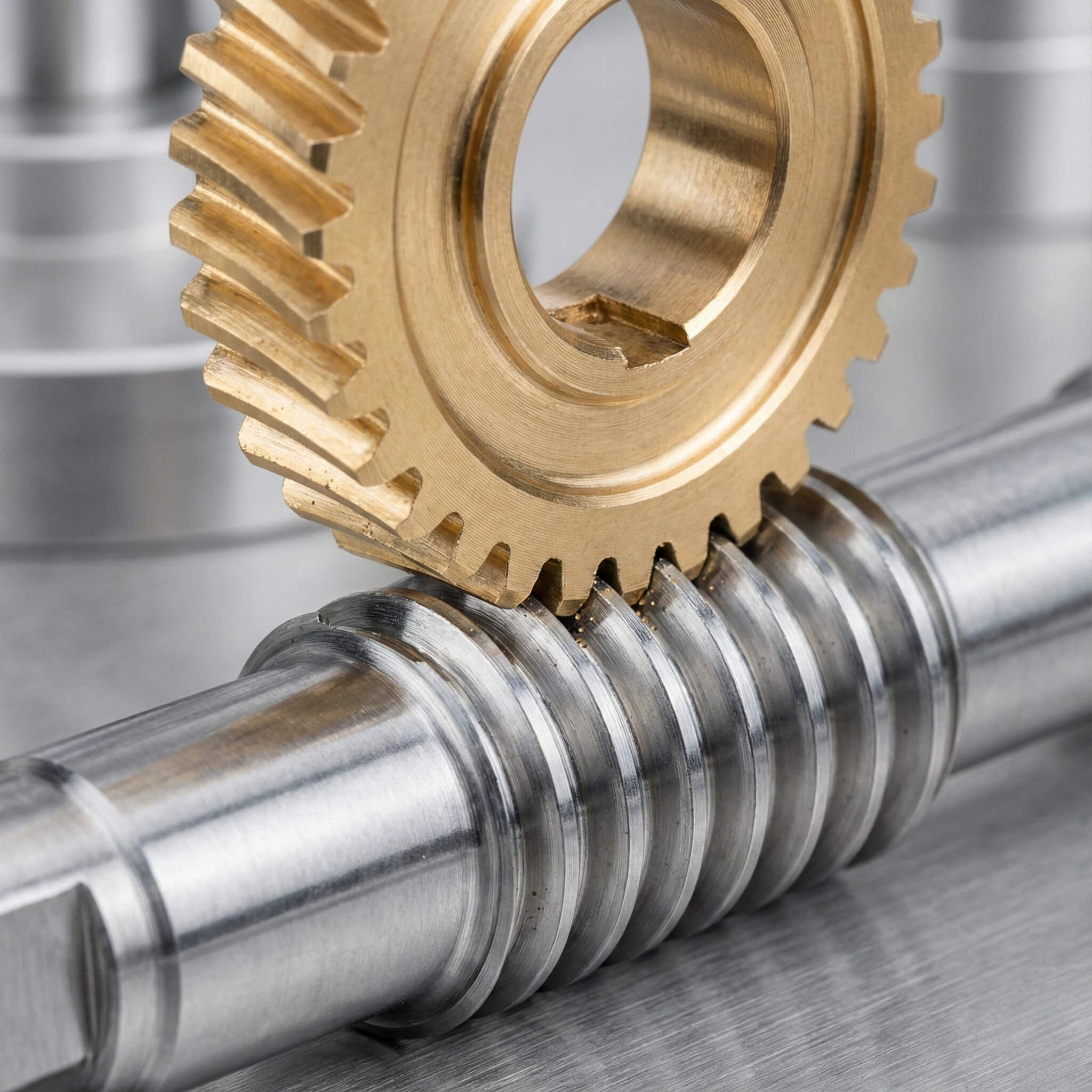

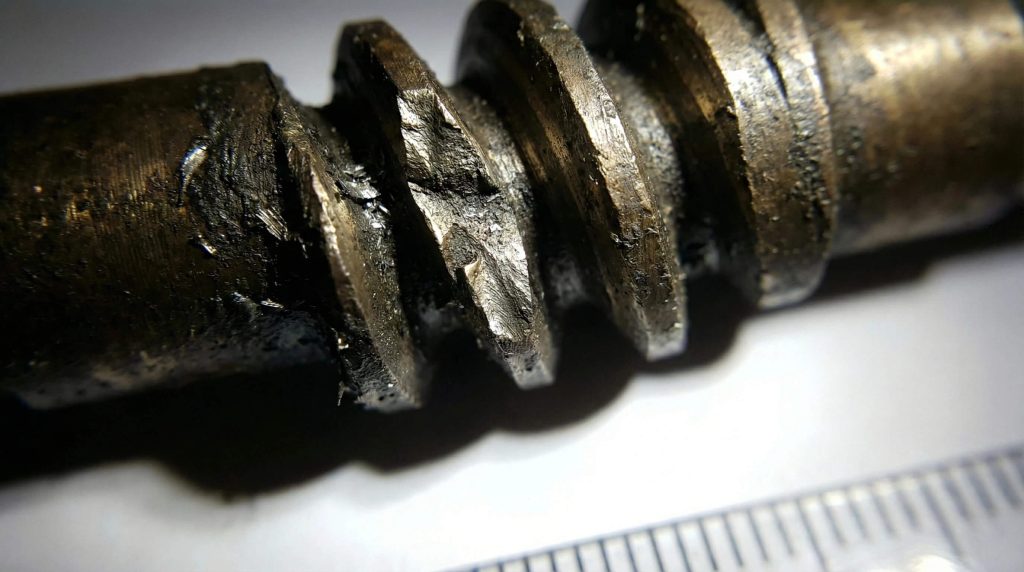

What Causes Early Failure?
Premature failure is rarely bad luck; it is physics punishing a bad choice. But here is the truth. Over 60% of worm gear issues arise from improper tribological pairing.
- Pitting: Surface fatigue from contact stress.
- Scoring: Lubrication breakdown causing welding.
- Wear: Abrasive removal of soft metal.
The Cost of Poor Choices
Ignoring material science hits your wallet harder than the initial purchase price ever could. Think about this. The cost of downtime often exceeds the gear set’s value by ten times.
- Replacement parts: Expedited shipping fees.
- Labor: Emergency maintenance crews.
- Reputation: Loss of client trust.
Material Compatibility Analysis
Choosing the right pair dictates the lifespan of your entire transmission system. Why does this matter? Without a sacrificial element, the entire system destroys itself rather than wearing predictably.
Key Takeaway:
You must prioritize the compatibility of the worm and wheel to ensure the system fails safely and predictably after a long service life. The worm should polish the wheel, not chew it up.
| Failure Mode | Primary Cause | Material Solution |
|---|---|---|
| Pitting | High surface stress | Centrifugal Cast Bronze |
| Scoring | Metal-to-metal contact | Dissimilar hardness pair |
| Spalling | Sub-surface fatigue | Nickel Bronze upgrade |
Data indicates that 60% of failures originate from improper hardness ratios between the worm and the wheel.
2. Bronze Alloys in Worm Gear Material Selection
Why Use Phosphor Bronze?
Phosphor bronze (CuSn10P1) is the industry standard for good reason. You might be wondering. Why not just use cheaper brass for everything?
- Lubricity: Excellent emergency running properties.
- Wear: Superior resistance to steel worm friction.
- Cost: Balanced performance per dollar.
Centrifugal vs. Sand Casting?
The casting method defines the structural integrity of your gear. But here’s the catch. Sand casting often leaves porosity that weakens teeth under load.
- Sand Cast: Cheaper, prone to air pockets.
- Centrifugal: Denser grain structure.
- Continuous: Consistent but limited sizes.
When to Upgrade to Nickel?
For heavy loads, standard bronze might not cut it. It gets better. Adding nickel creates CuSn12Ni, a powerhouse for high-torque applications.
Key Takeaway:
Centrifugal casting (CuSn12Ni) offers the best structural density for heavy loads, drastically reducing the risk of tooth breakage. Always verify the casting method with your supplier.
| Material | Tensile Strength | Application |
|---|---|---|
| CuSn10P1 | ~300 MPa | General Machinery |
| CuSn12Ni | ~400 MPa | Heavy Lifting/Mining |
| Al-Bronze | ~600 MPa | Low Speed/High Load |
Selecting Nickel Bronze increases load capacity by roughly 20% compared to standard phosphor bronze.
3. Steel Shafts for Worm Gear Material Selection
Is 20CrMnTi the Best Choice?
In China, 20CrMnTi is the go-to alloy for high-performance worms. Here’s the deal. It offers an exceptional balance of core toughness and surface hardness.
- Core: Resists shock loads.
- Surface: Accepts deep case hardening.
- Availability: Widely consistent supply.
The Importance of Surface Hardness
The worm must act as a file that never dulls but is smooth enough not to cut. Imagine if. Your worm was softer than the wheel; the system would seize immediately.
- Target: 58-62 HRC.
- Process: Carburizing and quenching.
- Depth: 0.8mm to 1.5mm effective case.
Grinding Accuracy Matters
Hardness means nothing if the surface is rough. Why is this critical? A rough worm acts like sandpaper on your bronze wheel.
Key Takeaway:
The worm shaft must be significantly harder than the wheel to polish the contact zone during operation. Yantong ensures a mirror finish to maximize the bronze wheel’s life.
| Grade | Hardness (HRC) | Application |
|---|---|---|
| 20CrMnTi | 58-62 | Heavy Industry |
| 42CrMo | 50-55 | Medium Duty |
| SS304 | < 30 | Food/Marine (Soft) |
A hardness differential of at least 40 HRC is essential for maintaining a healthy tribological film.
4. Load Capacity and Worm Gear Material Selection
Calculating Safety Factors
Never design exactly to the limit; always leave room for the unexpected. But here’s the key. A safety factor of 1.0 is a recipe for disaster in real-world conditions.
- Service Factor: Account for daily running hours.
- Start/Stop: Frequency impacts fatigue.
- Temperature: Heat lowers metal strength.
Handling Shock Loads
Sudden stops or jams put immense stress on gear teeth. You need to know. Harder materials are often more brittle and can snap under shock.
- Toughness: Ability to absorb energy.
- Elongation: Metals that stretch before breaking.
- Damping: Cast iron housings help absorb vibration.
Static vs. Dynamic Stress
A gear holding a load acts differently than one lifting it. Think about this. The material must resist creeping deformation under static load.
Key Takeaway:
High shock loads require materials with higher elongation, not just ultimate hardness. You must balance tensile strength with the material’s ability to absorb impact.
| Material | Yield Strength (MPa) | Shock Resistance |
|---|---|---|
| Phosphor Bronze | 170 | Excellent |
| Aluminum Bronze | 280 | Good |
| Cast Iron | 200 | Poor (Brittle) |
For mining applications, prioritizing tensile strength prevents catastrophic tooth shearing during startup.
5. Friction Factors in Worm Gear Material Selection
Reducing Sliding Friction
Worm gears define themselves by sliding contact, which generates heat. Here is the secret. Low friction coefficients are your primary defense against thermal failure.
- Surface Finish: Ra 0.4 or better.
- Material Pair: Dissimilar metals slide best.
- Lubricant: Reduces metal-to-metal contact.
Material Compatibility Charts
Not all metals play nicely together in a gearbox. You must avoid. Pairing stainless steel with aluminum bronze without careful engineering.
- Best: Steel on Phosphor Bronze.
- Good: Steel on Cast Iron.
- Risky: Stainless on Stainless (Galling).
Impact on Efficiency
Material choice directly changes your power bill. Consider this. Lower friction means more input power reaches the output shaft.
Key Takeaway:
Dissimilar materials (Hard Steel on Soft Bronze) are required to prevent galling (cold welding). This combination inherently reduces the coefficient of friction.
| Pair | Friction Coeff (Lubricated) | Risk of Galling |
|---|---|---|
| Steel / Phos Bronze | 0.08 – 0.10 | Very Low |
| Steel / Al Bronze | 0.10 – 0.14 | Moderate |
| Steel / Steel | > 0.20 | High |
Lower friction coefficients directly correlate to reduced operating temperatures and extended oil life.
6. Lubrication Compatibility in Worm Gear Material Selection
Synthetics vs. Mineral Oils
The oil you choose must chemically agree with your bronze. But watch out. Some oils are great for steel but deadly for copper alloys.
- PAG (Polyalkylene Glycol): High efficiency, beware paints/seals.
- PAO (Polyalphaolefin): Versatile, compatible.
- Mineral: Cheap, lower thermal stability.
Reactivity with Yellow Metals
This is the silent killer of worm gears. Here is the danger. “Extreme Pressure” (EP) additives containing active sulfur eat bronze for breakfast.
- Corrosion: Chemical pitting on teeth.
- Discoloration: Darkening of the gear.
- Weakness: Structural degradation over time.
Viscosity and Material Wear
Thicker oil isn’t always better, but thin oil kills gears. Let’s be clear. Viscosity builds the wedge that separates your material selection choices.
Key Takeaway:
Ensure your oil additives (like Sulfur-Phosphorus) do not corrode the selected bronze worm gear material selection. Always check the lubricant datasheets for “Yellow Metal Compatibility.”
| Lubricant Base | Bronze Compatibility | Efficiency |
|---|---|---|
| Polyglycol (PAG) | Check Seals/Paints | High |
| PAO Synthetic | Excellent | Medium-High |
| Mineral Oil | Excellent | Medium |
Using aggressive EP additives on standard bronze causes chemical corrosion faster than mechanical wear.
7. Manufacturing Precision in Worm Gear Material Selection
Traceability of Raw Materials
You cannot rely on a material you cannot trace. Here is the reality. Yantong Tech provides mill certificates to prove your bronze is actually bronze.
- 3.1 Certificates: Chemical composition verification.
- Batch Tracking: Identifying specific production runs.
- Supplier Audits: Ensuring raw purity.
Heat Treatment Consistency
A worm shaft is only as good as its heat treatment. Imagine if. The hardening was uneven; soft spots would wear out in weeks.
- Carburizing: Adding carbon to surface.
- Quenching: Rapid cooling for hardness.
- Tempering: Relieving internal stress.
Yantong’s Quality Control
We don’t just assume it’s right; we prove it. Why trust us? We measure every batch against ISO standards before shipping.
Key Takeaway:
A great material spec fails without verified manufacturing process controls and documentation. Material selection is useless without the paperwork to prove it.
| Test | Purpose | Standard |
|---|---|---|
| Spectrometry | Verify Chemistry | ASTM / DIN |
| Hardness Test | Verify Wear Resistance | HRC / HB |
| Ultrasonic | Detect Internal Voids | ISO 9712 |
Consistent grain structure in the raw material ensures that machining achieves the ISO 6 precision standard.
8. Balancing Cost in Worm Gear Material Selection
Upfront Price vs. LCC
Cheap gears are expensive to own. Here’s the deal. Saving $50 now could cost $5000 in downtime later.
- Acquisition Cost: Initial purchase price.
- Maintenance Cost: Oil changes and labor.
- Failure Cost: Lost production revenue.
Standard vs. Custom Alloys
Custom isn’t always necessary for performance. You should know. Standard alloys like CuSn12Ni often offer the best balance of availability and performance.
- Standard: Readily available, tested.
- Custom: Long lead times, minimum orders.
- Exotic: High cost, diminishing returns.
Where to Save Money?
Don’t cut costs on the gear teeth. But here is a tip. Save money on non-critical components like the housing or static covers.
Key Takeaway:
Invest your budget in the gear wheel material; save on non-critical housing components. The bronze rim is the heart of the machine.
| Component | Material Cost Impact | Reliability Impact |
|---|---|---|
| Worm Wheel | High | Critical |
| Worm Shaft | Medium | Critical |
| Housing | Low | Low |
Spending 15% more on high-grade bronze can extend service intervals by over 50%.
9. Final Steps for Worm Gear Material Selection
Reviewing Your Application
Take a step back and look at the whole picture. Ask yourself. Does this machine run 24/7 or only once a day?
- Duty Cycle: Continuous vs. Intermittent.
- Environment: Hot, cold, or dirty.
- Load: Uniform or shock.
Consulting the Manufacturer
Don’t guess when you can ask an expert. Why risk it? Yantong engineers see thousands of applications and can spot pitfalls instantly.
- Experience: Decades of field data.
- Simulation: Software verification of loads.
- Optimization: Suggesting better alternatives.
Finalizing the Spec Sheet
Put everything in writing to avoid ambiguity. Here is the truth. A clear drawing prevents costly manufacturing errors.
Key Takeaway:
Collaboration with the factory engineer ensures the theoretical choice works in reality. Never finalize a design without a manufacturing review.
| Check | Description | Validated? |
|---|---|---|
| Hardness | Worm > Wheel (Delta 40 HRC) | [ ] |
| Material | Bronze Grade Confirmed | [ ] |
| Report | Heat Treatment & Material Certs | [ ] |
A validated spec sheet reduces the risk of batch inconsistencies during mass production.
Conclusion
Correct material selection transforms a worm gear from a disposable wear-part into a long-term asset. By understanding the interplay between bronze grades, steel hardness, and lubrication, you eliminate the guesswork that leads to failure. At Yantong Tech, we combine authentic, traceable materials with precision manufacturing to keep your machinery running efficiently. We are committed to empowering global industries with precision and reliability.
Ready to secure your production line? Contact Yantong Tech today to review your gear prints with our engineering team.
FAQ
Can I use a stainless steel worm shaft?
No, unless it is specially treated. Standard stainless steel is too soft and prone to galling; you must use specialized grades that can be hardened or coated (like DLC) to withstand sliding friction.
What’s the best bronze for high shock loads?
Nickel Bronze (CuSn12Ni) is superior. While standard phosphor bronze is good, the addition of nickel significantly increases tensile strength and toughness, preventing tooth breakage under sudden impact.
How do I know if my lubrication is compatible?
Check the datasheet for “Yellow Metal Compatibility.” If the lubricant contains active sulfur-phosphorus EP additives, it will corrode the bronze wheel, leading to chemical wear and failure.
Is Aluminum Bronze always stronger than Phosphor Bronze?
Yes, but it is not always better. While Aluminum Bronze has higher tensile strength, it has a higher coefficient of friction and can score the worm shaft if lubrication fails, whereas Phosphor Bronze offers better emergency running properties.
How do I verify the material quality from a Chinese factory?
Demand full traceability. You should request a 3.1 Material Certificate and a Heat Treatment report for every batch to ensure the chemical composition and hardness match your engineering drawings.
