A spur gear is a mechanical power transmission component featuring straight teeth cut parallel to the shaft axis to transfer motion between parallel shafts. You often deal with energy loss and mechanical vibration in your drive systems which compromises machine efficiency. These instabilities agitate the system, leading to accelerated component wear and unexpected maintenance costs. By integrating a precision-engineered example of spur gear, you stabilize torque delivery and ensure long-term operational reliability.
What defines a standard example of spur gear?
The primary definition of this component involves a cylindrical disk with teeth that project radially toward the outer edge. Every example of spur gear you utilize in a machine shop relies on this radial symmetry to maintain a constant velocity ratio.
Here is the deal. Because the design is so straightforward, these gears are the most cost-effective solution for simple rotational transfers. They eliminate axial thrust, which simplifies your bearing selection process.
Primary Physical Characteristics
- Straight-cut teeth aligned with the shaft.
- Purely radial load transmission.
- High-velocity ratio stability.
Simple Manufacturing Advantages
Think about it. The lack of complex angles makes these parts easy to produce via hobbing or milling. You reduce your lead times when ordering replacements compared to complex gear geometries.
Key Takeaway: A standard spur gear uses parallel straight teeth to provide a reliable, no-thrust transmission for parallel shaft machinery.
Refer to the table below to analyze the core physical traits of these gears.
| Feature | Specification | B2B Impact |
|---|---|---|
| Tooth Angle | 0 Degrees (Parallel) | Zero axial load on bearings |
| Shaft Type | Parallel | Simplified housing design |
| Mesh Type | Line Contact | High power density per unit |
How do teeth mesh in an example of spur gear?

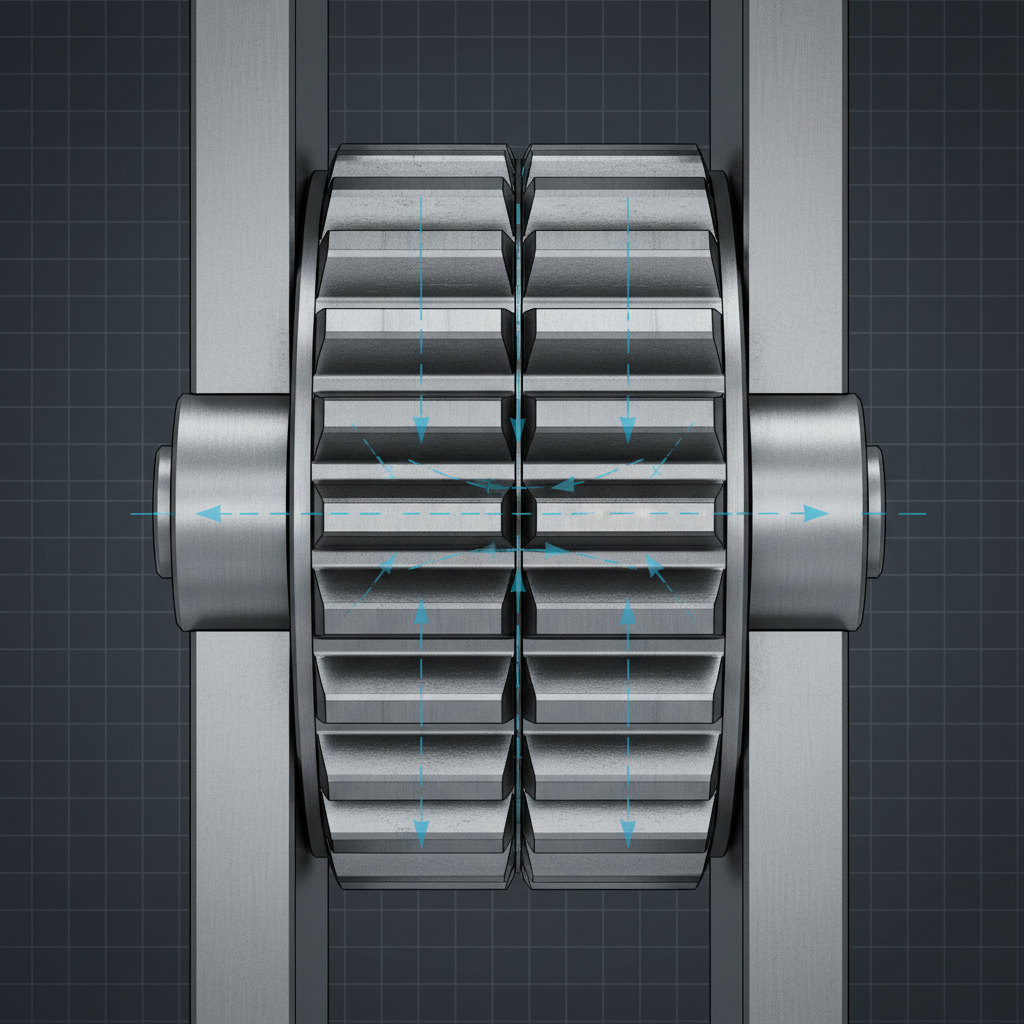

Teeth engagement occurs along a full line of contact that spans the entire face width of the gear instantaneously. When you compare this to an example of spur gear used in right-angle drives, the contact mechanics are much simpler.
It gets better. This line contact allows for massive force distribution across the tooth surface. It prevents the localized stress concentrations that often lead to tooth breakage in high-torque environments.
Instantaneous Engagement Mechanics
Check this out. As the gears rotate, the entire face of one tooth strikes the other at once. While this provides high strength, it can create a distinctive “whine” at high rotational speeds.
Uniform Stress Distribution
- Consistent pressure across the face width.
- Reduced risk of surface pitting.
- Predictable fatigue life.
Key Takeaway: Instantaneous line contact during meshing ensures that spur gears can handle significant radial loads without deforming.
Review the following engagement metrics to understand load capacities.
| Metric | Engagement Style | Performance Result |
|---|---|---|
| Contact Path | Line Contact | High torque capacity |
| Force Direction | Radial Only | Minimal shaft deflection |
| Engagement | Sudden | High impact resistance |
Which external types define an example of spur gear?

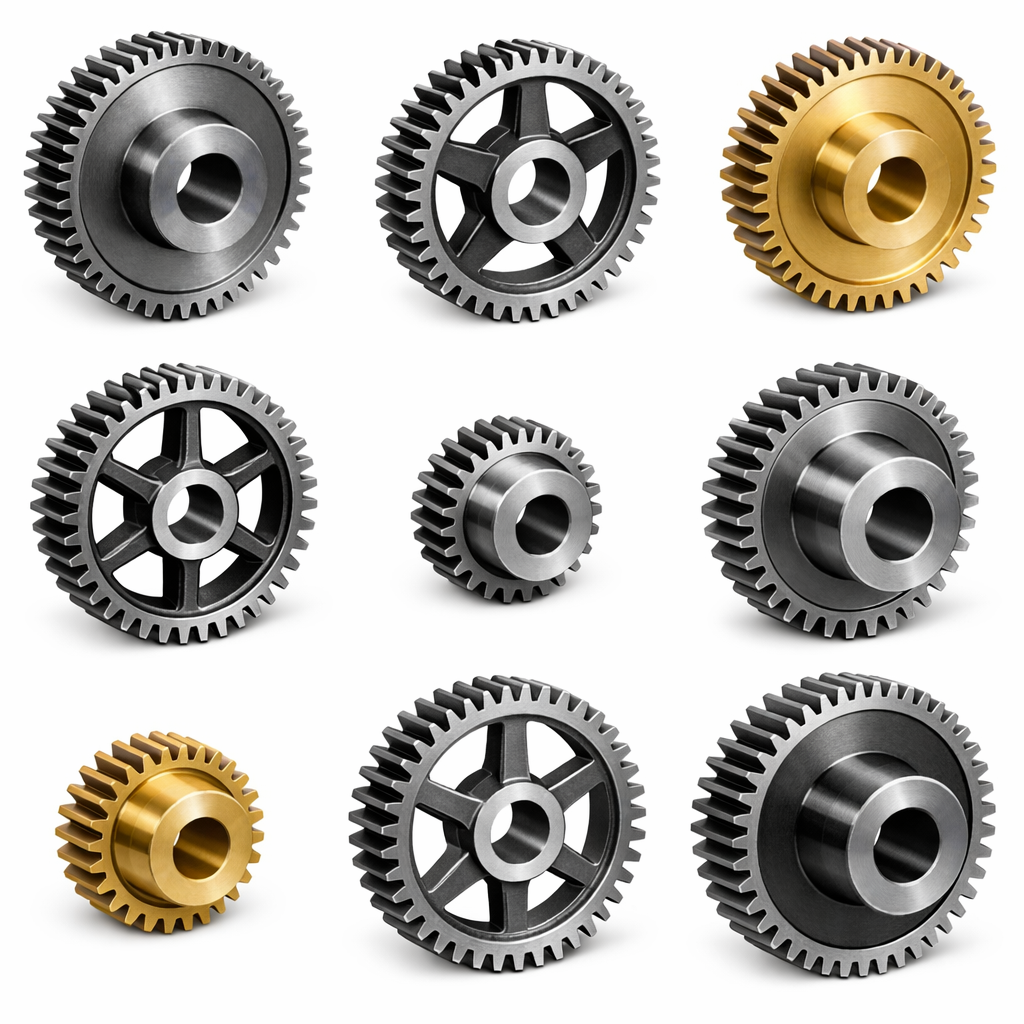

External gears are the most prevalent variation where the teeth are precision-machined onto the outer surface of the hub. You will find an example of spur gear in this category rotating in the opposite direction of its mate.
But wait, there is more. These variations allow you to build complex gear trains that can reverse rotation or alter torque. They are the building blocks of most industrial speed reducers.
Standard External Pairs
Here is the kicker. When two external gears mesh, they provide a highly efficient power path with minimal frictional loss. Their visibility makes them easy for your maintenance teams to inspect during routine rounds.
Rack and Pinion Sets
- Converts rotation to linear motion.
- Ideal for actuator systems.
- High positioning accuracy.
Key Takeaway: External spur gears are versatile components that allow for rotational reversals and linear motion conversion in industrial setups.

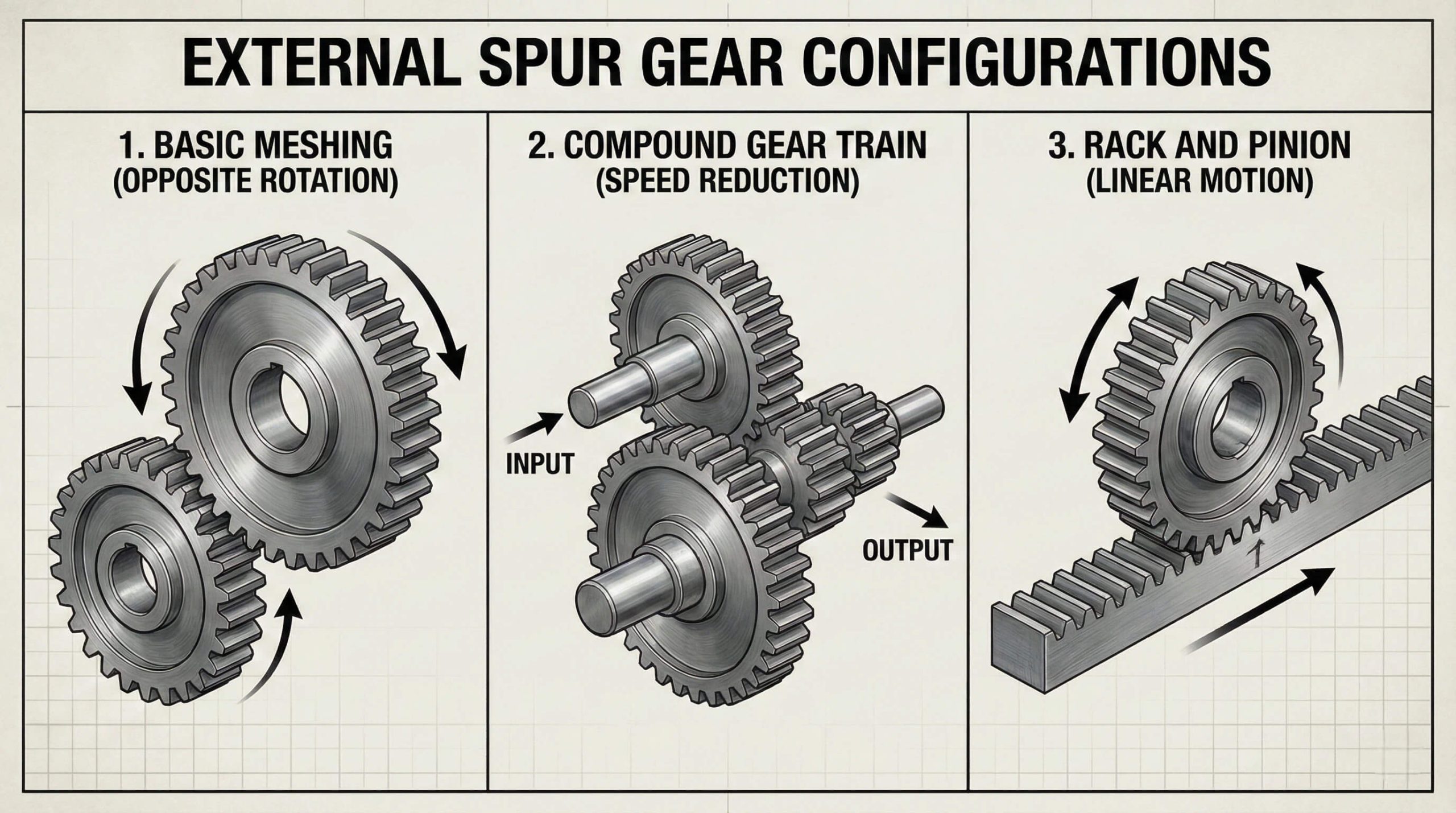

Analyze the external configurations in the summary table provided below.
| Type | Configuration | Motion Output |
|---|---|---|
| External Mesh | Hub to Hub | Counter-rotation |
| Gear Train | Multiple Hubs | Compound reduction |
| Rack Set | Hub to Flat Bar | Linear translation |
Why choose an internal example of spur gear?
Internal gears feature teeth cut on the inside of a ring, allowing a smaller gear to sit directly inside the larger circumference. You might use an example of spur gear like this to save space in tight mechanical footprints.
This is where it gets interesting. Because the gears are nested, the distance between the shaft centers is greatly reduced. This results in a much smaller gearbox housing compared to external configurations.
Compact Nested Design
What is the real story? The nested nature of these gears also provides better protection for the teeth. Since the outer ring encloses the inner pinion, foreign debris is less likely to cause a jam.
Directional Synchronization
- Gears rotate in the same direction.
- Increased tooth contact surface.
- Higher load-sharing capability.
Key Takeaway: Internal spur gears provide a space-saving alternative that allows for synchronized rotation and enhanced tooth protection.
The table below provides a comparison of internal versus external dimensions.
| Parameter | Internal Gear | Mechanical Benefit |
|---|---|---|
| Center Distance | Short | Reduced equipment footprint |
| Rotation | Same Direction | Simplified drive logic |
| Mesh Contact | Enclosed | Protection from environment |
How do helical types compare to an example of spur gear?
Helical gears utilize angled teeth to create a gradual engagement process rather than the sudden impact of a spur gear. While an example of spur gear is stronger for slow, heavy loads, helical versions are preferred for speed.
But that’s not all. The angle of the helical tooth introduces axial thrust, which requires you to use more expensive thrust bearings. Spur gears avoid this complication entirely.
Noise vs. Strength
Ready for the good part? Spur gears are noisy but exceptionally efficient at low speeds. Helical gears are quiet but generate heat due to the sliding action between the angled teeth.
Comparative Load Paths
- Spur: Purely radial load.
- Helical: Combined radial and axial.
- Spur: Impact engagement.
Key Takeaway: Spur gears offer a simpler bearing environment and higher rolling efficiency than their helical counterparts.
Analyze the differences between tooth geometries in this data table.
| Feature | Spur Design | Helical Design |
|---|---|---|
| Load Path | Radial | Radial + Axial |
| Noise | Moderate/High | Very Low |
| Efficiency | 98-99% | 95-97% |
Is efficiency high in every example of spur gear?
Spur gears typically achieve an efficiency rating between 95% and 99% per gear stage. This example of spur gear efficiency is among the highest in the world of mechanical engineering.
The fact is. Since the teeth only have rolling contact and no sliding, almost no energy is lost to heat. This makes them ideal for applications where you need to maximize every bit of torque.
Frictional Loss Minimization
You better believe it. Minimizing friction means your motors don’t have to work as hard to move the load. This leads to lower electricity bills and less heat stress on your lubricants.
Constant Velocity Ratios
- Precise tooth-to-tooth ratio.
- No slip during operation.
- Reliable timing for sensors.
Key Takeaway: The high rolling efficiency of spur gears makes them the most energy-conscious choice for parallel shaft transmission.

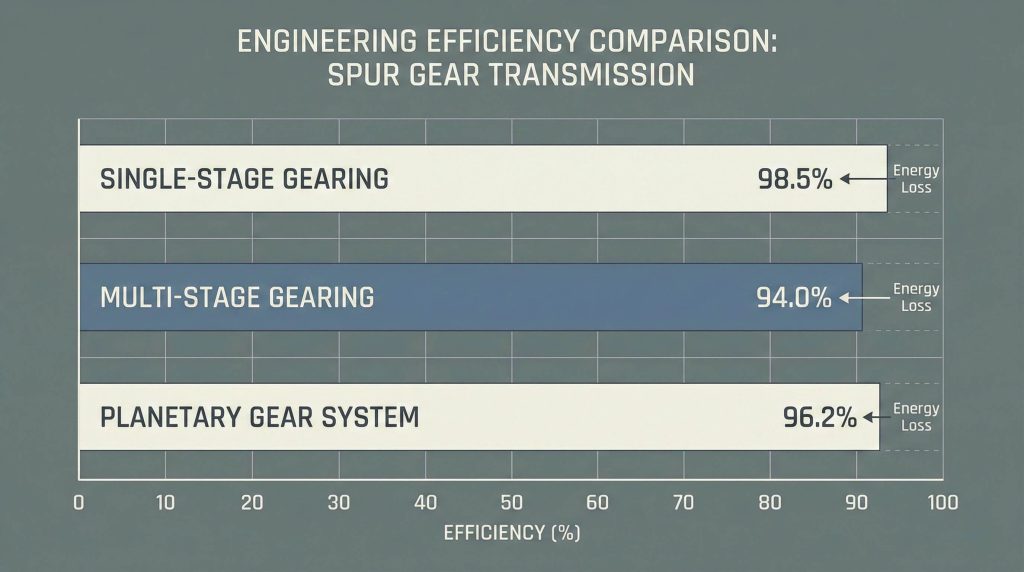

Use the table below to analyze typical efficiency benchmarks.
| Component | Efficiency | Power Loss |
|---|---|---|
| Single Stage | ~98.5% | Very Low |
| Triple Stage | ~95.0% | Moderate |
| Planetary | ~97.0% | Low |
What industrial task needs an example of spur gear?
Industrial conveyors and heavy lifting machinery rely on the high impact resistance of the spur gear tooth. An example of spur gear in a warehouse conveyor ensures that heavy pallets move without gear slip.
It gets better. In these environments, you need gears that can take a beating and keep running. The thick, straight teeth of a spur gear are less likely to chip under shock loads.
Conveyor Drive Reliability
Check this out. Conveyor systems often stop and start abruptly under full load. The robust nature of spur teeth handles these high-inertia events without the risk of catastrophic failure.
Manufacturing Precision
- Drives machine tool spindles.
- Controls automated arm movement.
- Synchronizes bottling lines.
Key Takeaway: Industrial tasks prioritize spur gears for their ability to handle sudden shock loads and maintain precise speed control.
Review the industrial application data in the following summary table.
| Industry | Primary Use | Gear Advantage |
|---|---|---|
| Logistics | Conveyor Belts | High shock resistance |
| Food Prep | Mixer Drives | Clean, efficient power |
| Manufacturing | Lathe Gears | Precise speed ratios |
How do vehicles utilize an example of spur gear?
Starter motors and manual transmissions use spur gears for high-torque engagement over short distances. You can see this example of spur gear in action every time you turn your car’s ignition.
Think about it. The starter pinion must slide in and out of mesh with the flywheel quickly. Straight teeth are far easier to engage and disengage than angled helical teeth.
Starter Pinion Engagement
But wait, there’s more. Because the starter motor only runs for a few seconds, the noise of the spur gear is not a concern. The priority is pure torque to turn over a cold engine.
Reverse Gear Identification
- Straight teeth for reverse.
- Distinctive “whine” sound.
- Simple shifting mechanics.
Key Takeaway: Automotive systems rely on spur gears for heavy-duty starting tasks and simple reverse gear configurations.
Review the automotive gear functions in the table below.
| Vehicle Part | Type | Function |
|---|---|---|
| Starter Motor | Pinion | Engine cranking torque |
| Transmission | Reverse Spur | Directional change |
| Oil Pump | External Spur | Fluid circulation |

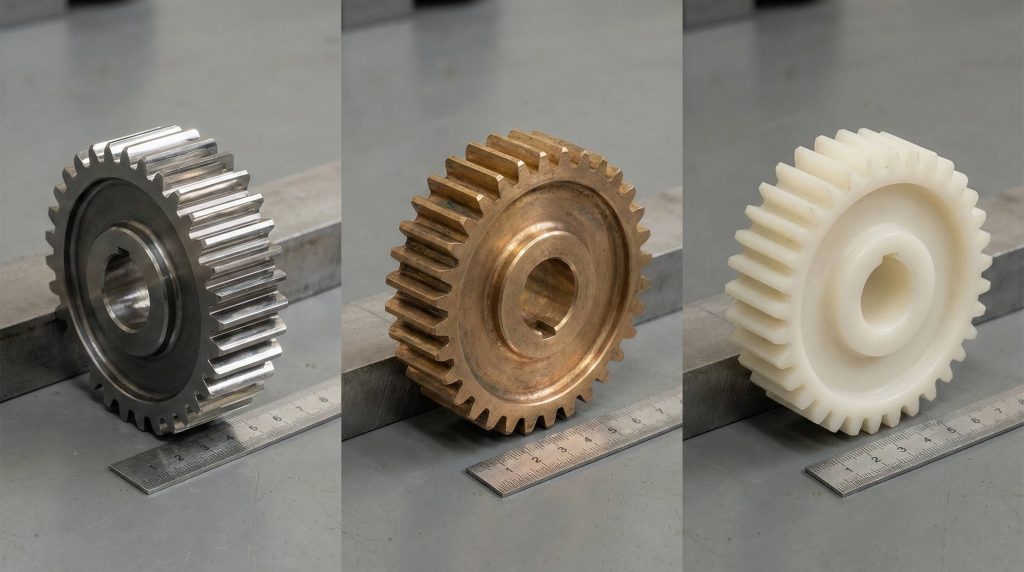

Which materials suit an example of spur gear?
Choosing the right material depends entirely on your load requirements and environmental factors. An example of spur gear made of hardened steel is the standard for high-torque industrial gearboxes.
Here is the deal. If you are working in a corrosive environment, you might switch to stainless steel or even high-grade plastics. Plastic spur gears are self-lubricating and much quieter.
Hardened Steel Strength
What is the real story? For your heaviest loads, case-hardened steel provides a hard surface to resist wear and a tough core to resist snapping. It is the gold standard for durability.
Polymer and Nylon Uses
- Lightweight and inexpensive.
- No lubrication required.
- Corrosion-proof for washdowns.
Key Takeaway: Material selection balances the need for high-load strength with environmental factors like corrosion and noise.
Use the table below to analyze material performance for your next project.
| Material | Load Capacity | Key Benefit |
|---|---|---|
| Alloy Steel | Extreme | Highest fatigue life |
| Brass/Bronze | Medium | Low friction/No sparks |
| Nylon/Plastic | Low | Silent and rust-proof |

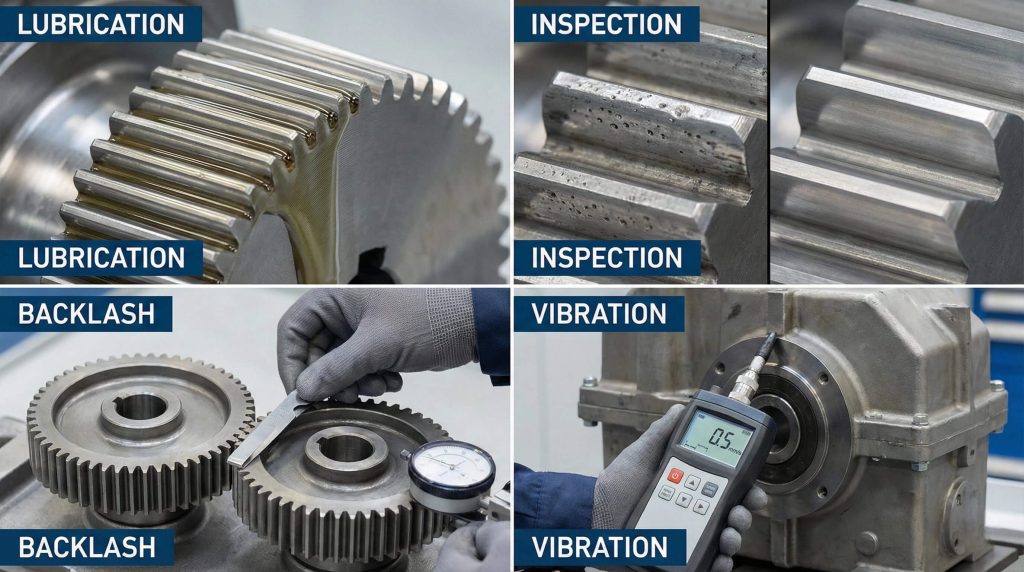

What upkeep is vital for an example of spur gear?
Lubrication is the single most important maintenance task for preventing metal-on-metal wear. This example of spur gear maintenance routine ensures that the tooth faces remain smooth and free of pitting.
The fact is. Without a consistent oil film, the friction will generate heat that warps the gear geometry. Regular inspections allow you to catch wear patterns before they become failures.
Lubrication Intervals
You might be wondering. How often should you grease? High-speed gears require continuous oil baths, while slow-speed open gears can be serviced with a manual grease application monthly.
Wear Pattern Monitoring
- Check for pitting on faces.
- Monitor vibration levels.
- Listen for changes in pitch.
Key Takeaway: Routine lubrication and visual wear checks are the primary ways to extend the life of your spur gears.
Follow the maintenance guide in the table below for optimal gear life.
| Action | Frequency | Goal |
|---|---|---|
| Lubrication | Weekly/Auto | Friction reduction |
| Alignment Check | Quarterly | Prevent uneven wear |
| Backlash Check | Bi-Annually | Maintain precision |
Conclusion
Spur gears remain the most reliable and efficient choice for power transmission between parallel shafts. From their high-load capacity to their simple, cost-effective design, these components drive the heart of global industry. By selecting the correct materials and following a strict maintenance schedule, you ensure your machinery operates with minimal downtime. If you are ready to optimize your industrial drive systems, contact us today to find the perfect gear solution for your application. Our brand is committed to delivering precision engineering that moves your business forward.
Frequently Asked Questions
Q1: Can I use spur gears for non-parallel shafts?
No, spur gears are designed exclusively for parallel shafts. If you have intersecting or non-parallel shafts, you should consider using bevel or worm gears.
Q2: What’s the best way to reduce spur gear noise?
The best way to reduce noise is to ensure perfect alignment and high-quality lubrication. If noise is still a factor, switching to a high-performance plastic material or helical gears may be necessary.
Q3: How do I know if my spur gear is worn out?
You can tell by checking for excessive backlash, visible pitting on the teeth, or a sudden increase in operational noise. If the gear teeth appear thin or “knife-edged,” they must be replaced.
Q4: Can I mix spur gears with helical gears?
No, spur gears and helical gears have different tooth profiles and engagement angles. They cannot mesh together and will cause immediate damage if forced.
Q5: What’s the best material for food-grade spur gears?
Stainless steel or food-grade plastics like Delrin are the best choices. These materials resist the harsh chemicals used in washdown environments and do not rust.
