You are likely running a high-precision indexing table or a rotary feed drive where positioning accuracy is critical. Initially, the machine holds tolerance perfectly, but over months of operation, wear creates backlash. Suddenly, your holding torque drops, and jitter appears. You cannot simply move the center distance to fix it without rebuilding the entire housing.
The solution lies in the duplex system. But here is the kicker… implementing a dual lead worm gear allows you to regain factory precision with a simple axial adjustment.
At Yantong Tech, we do not just cut gears; we engineer long-term stability. With our DIN-standard grinding and full CMM traceability, we ensure your equipment stays precise for years, not just months.
1. What Defines a Dual Lead Worm Gear?
How does pitch vary axially?
A dual lead worm gear is defined by a unique geometry where the left and right tooth flanks have different lead measurements. This difference creates a tooth thickness that changes continuously along the length of the worm shaft. You might be wondering… how this differs from a tapered worm.
- Unlike tapered gears, the duplex worm remains cylindrical.
- It allows the gear to fit into standard cylindrical bores.
- The geometry relies on differing lead pitches rather than a conical shape.
What distinguishes it from standard?
Standard worms have a fixed tooth thickness, meaning the only way to reduce backlash is to move the worm closer to the wheel. A duplex worm controls the fit through axial positioning.
- Standard gears require complex adjustable housings to close the gap.
- Duplex gears utilize a fixed center distance.
- Adjustments are made strictly by shifting the shaft sideways.
Key Takeaway: The defining characteristic of this gear is the variable tooth thickness derived from different lead measurements on opposite flanks, enabling backlash control without altering the housing structure.
| Feature | Standard Worm | Dual Lead Worm Gear |
|---|---|---|
| Pitch | Constant | Variable (Dual) |
| Backlash Adjust | Move Center Distance | Shift Axially |
| Housing Design | Adjustable/Complex | Fixed/Simple |
This comparison highlights that the primary advantage lies in simplifying the gearbox housing design while maintaining adjustability.
2. Why Choose a Dual Lead Worm Gear Design?
Can it extend machine life?
By adjusting the worm axially to compensate for wear, you restore the mesh to “like-new” conditions. Here is the bottom line: this capability prevents the early scrapping of expensive rotary tables.
- It extends the production hours per gear set significantly.
- It reduces the frequency of full overhauls.
- It maintains torque transmission efficiency over time.
How does it improve precision?
Yantong Tech grinds these gears to ISO Grade 6, allowing for near-zero backlash. This rigidity is essential for robotic joints and precision indexing.
- Microns of play can cause massive positioning errors at the output.
- High rigidity prevents “shudder” during start-stop cycles.
- It supports high-accuracy feedback loops in CNC machinery.
Is it cost-effective long term?
While the initial manufacturing cost is higher due to complex grinding, the Life Cycle Cost (LCC) is lower.
- You avoid expensive downtime associated with standard gear replacement.
- Housing modifications are rendered unnecessary.
- Maintenance becomes a scheduled adjustment rather than an emergency repair.
Key Takeaway: Choosing this design is an investment in longevity and sustained precision, offsetting higher initial costs by drastically reducing operational downtime and maintenance complexity.
| Metric | Standard Gear | Dual Lead Worm Gear |
|---|---|---|
| Initial Cost | Lower | Higher |
| Maintenance Downtime | High | Low |
| Service Life | Medium | Extended |
While the upfront investment is higher, the drastic reduction in downtime creates a more favorable long-term economic model.

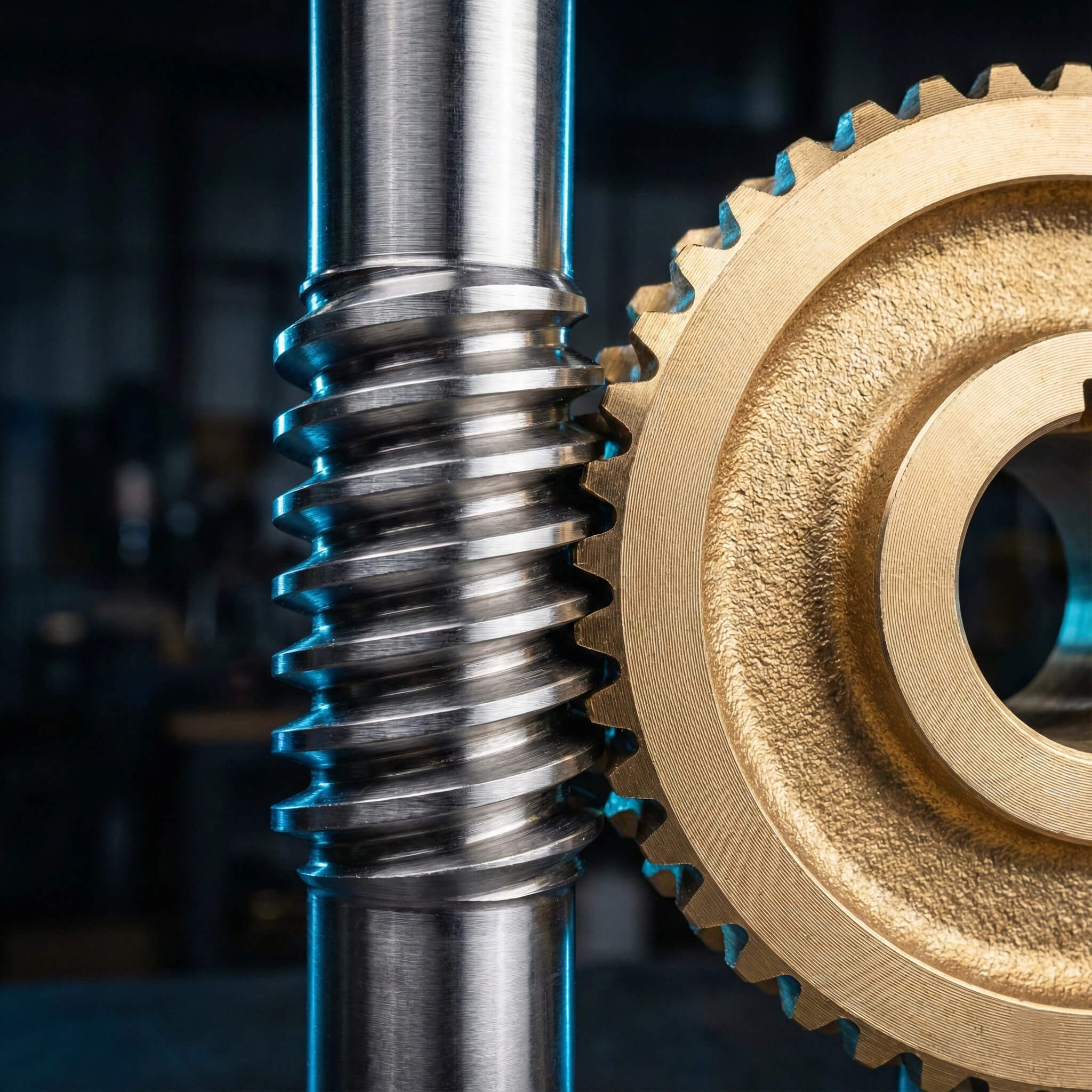

3. How Does a Dual Lead Worm Gear Work?
How does the shaft shift axially?
The mechanism relies on shims or a threaded adjustment ring that moves the worm shaft. As you move the worm into the mesh, the “thicker” section of the thread fills the gap caused by wear. This creates a unique advantage… giving you precise control over backlash.
- Adjustments can be made down to microns.
- There is no need to dismantle the entire gearbox.
- The adjustment follows the wear pattern of the gear naturally.
Does center distance change?
No. The center distance ($a$) remains absolutely fixed.
- This simplifies the machining of the gearbox housing.
- Simple boring operations are sufficient for manufacturing.
- It improves overall housing rigidity by eliminating slotted holes.
Key Takeaway: The mechanism functions by sliding a variable-thickness thread into a fixed gap, effectively acting like a wedge to eliminate play without changing the gearbox geometry.
| Action | Effect on Backlash | Effect on Center Dist. |
|---|---|---|
| Shift Worm In | Reduces | None |
| Shift Worm Out | Increases | None |
| Wear Over Time | Increases | None |
The data confirms that backlash control is entirely independent of the center distance, ensuring structural integrity remains compromised.
4. Manufacturing a Dual Lead Worm Gear
Why is grinding critical?
Cutting two different leads on one shaft is mathematically complex. Ready for the technical part? Any heat treatment distortion will cause the dual leads to fight each other.
- Distortion leads to immediate lock-up during rotation.
- Yantong Tech uses CNC form grinding to correct profile errors.
- Hardening must occur before the final profile is generated.
How do we check profile errors?
We utilize Gear Measuring Centers to verify the individual leads on left versus right flanks.
- Standard software cannot analyze the dual lead geometry.
- Specific software modules are required to ensure correct contact patterns.
- Verification must confirm the lead variation is linear and accurate.
Key Takeaway: Precision manufacturing is non-negotiable; without advanced CNC grinding and specialized inspection, a dual lead gear is virtually guaranteed to fail or bind.
| Process | Conventional | Yantong Precision |
|---|---|---|
| Finishing | Milling/Hobbing | CNC Form Grinding |
| Inspection | Hand Mesh | CMM & Graph |
| Tolerance | DIN 9-10 | DIN 5-7 |
The shift from conventional hobbing to CNC form grinding is what separates a functional precision gear from a locking failure.

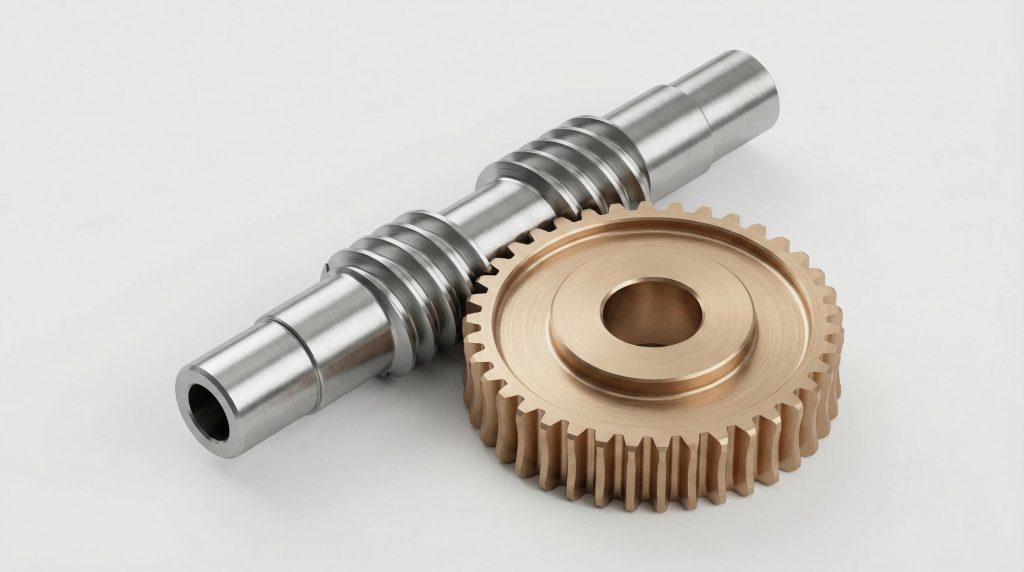

5. Material Selection for Dual Lead Worm Gear Sets
Which bronze works best?
For the worm wheel, we recommend Centrifugally Cast Bronze (CuSn12Ni). It turns out… material purity dictates wear rates.
- A low friction coefficient is non-negotiable.
- High sliding loads in duplex drives require superior lubricity.
- Centrifugal casting eliminates porosity in the teeth.
Why use case-hardened steel?
The worm shaft is manufactured from 18CrNiMo7-6 or 20CrMnTi, carburized to 58-62 HRC.
- The surface must be hard enough to resist scoring.
- The core remains tough to absorb shock loads.
- Polishing to Ra 0.4 prevents abrading the softer bronze wheel.
Key Takeaway: The tribological pair must consist of a highly polished, hardened steel shaft and a pure, centrifugally cast bronze wheel to survive the sliding friction.
| Component | Material | Hardness |
|---|---|---|
| Worm Shaft | 18CrNiMo7-6 | 58-62 HRC |
| Worm Wheel | CuSn12Ni2 | 90-100 HB |
Balancing the extreme hardness of the shaft with the sacrificial nature of the bronze wheel is critical for preventing seizure.
6. Adjusting Backlash on a Dual Lead Worm Gear
When to adjust the screw?
Adjustments should be made when you detect specific symptoms in the machine’s performance. Don’t make this mistake… waiting until the teeth are stripped.
- Adjust when vibration increases during cuts.
- Adjust upon detection of lost positioning accuracy.
- Do not wait for catastrophic impact loads to destroy the gear.
How much adjustment is safe?
You must calculate the axial shift relative to backlash reduction.
- Over-tightening creates excessive preload.
- Excessive preload generates heat and leads to seizure.
- Always verify the rotating torque manually after adjustment.
Key Takeaway: Maintenance is proactive; adjusting backlash is a precision procedure that requires measuring torque, not just tightening a screw until it stops.
| Step | Action | Goal |
|---|---|---|
| 1 | Measure Play | Establish Baseline |
| 2 | Unlock Shaft | Allow Movement |
| 3 | Shift Axially | Reduce Gap |
| 4 | Verify Torque | Prevent Binding |
Following a strict verification protocol ensures that the removal of backlash does not introduce dangerous friction levels.
7. Lubrication Needs of the Dual Lead Worm Gear
Which oil viscosity fits?
We strongly recommend high-viscosity synthetic PAG oils (ISO VG 320/460). Here is the truth: Mineral oil often fails in these applications.
- Mineral oil lacks film strength under high sliding velocities.
- PAG oils provide superior friction reduction.
- Synthetic bases resist thermal breakdown better.
How often to change oil?
Due to the “bedding in” of the bronze wheel, the schedule is strict.
- The first change must occur after 50-100 hours.
- This removes initial bronze particles from the mesh.
- Subsequent intervals extend to 2000-4000 hours.
Key Takeaway: Lubrication is a structural component of the gear set; using the wrong viscosity or base oil will destroy the bronze wheel regardless of manufacturing quality.
| Parameter | Recommendation | Reason |
|---|---|---|
| Base Oil | Polyglycol (PAG) | Low Friction |
| Viscosity | VG 320 / 460 | Film Strength |
| Additives | EP (Extreme Pressure) | Anti-wear |
High-viscosity PAG oil is the only reliable barrier preventing metal-to-metal contact in high-load duplex applications.
8. Common Failures of the Dual Lead Worm Gear
What causes rapid wear?
Rapid wear usually stems from environmental contamination or setup errors. Check this first… is your contact pattern centered?
- Abrasive particles in dirty oil act like grinding paste.
- Edge-loading the mesh destroys the geometry.
- Poor initial alignment prevents the dual leads from functioning.
How to prevent seizure?
Seizure, or scuffing, occurs when the oil film breaks down, welding bronze to steel.
- This is almost always caused by over-tightening the backlash adjustment.
- Skipping the warm-up cycle on high-speed tables causes thermal shock.
- Lack of EP additives in the oil allows surface welding.
Key Takeaway: Most failures are not design flaws but maintenance errors, specifically regarding oil cleanliness and the over-tightening of the axial adjustment.
| Failure Mode | Primary Cause | Prevention Strategy |
|---|---|---|
| Rapid Wear | Contaminated Oil | Filtration/Cleanliness |
| Edge Loading | Misalignment | Check Contact Pattern |
| Seizure | Over-tightening | Torque Verification |
Identifying whether the failure is abrasive (wear) or adhesive (seizure) immediately points to the root cause: dirt or preload.
9. Sourcing a Custom Dual Lead Worm Gear
What data does Yantong need?
To manufacture a dual lead worm gear, Yantong requires specific technical parameters. You need to know… that exact mounting dimensions are critical.
- Module and Ratio are essential baselines.
- Leads (Left/Right) must be specified or measured.
- Center Distance defines the housing fit.
Why trust Yantong Tech?
We are a 96-person specialized manufacturing team, not a trading company. We provide “Engineer-to-Engineer” communication.
- We ensure your backlash requirements are met.
- We provide verifiable CMM reports.
- We include material certificates with every shipment.
Key Takeaway: Sourcing requires a partner who understands the reverse engineering process and provides the documentation necessary to validate precision.
| Document | Purpose | Yantong Standard |
|---|---|---|
| CMM Report | Verify Geometry | Included |
| Material Cert | Verify Steel | Included |
| Heat Treat | Verify Hardness | Included |
Traceability is the only guarantee of quality; Yantong provides full documentation to prove the gear meets the stringent requirements.
Conclusion
We have explored the unique geometry of the dual lead worm gear, its ability to maintain zero backlash through axial shifting, and the critical manufacturing standards required to make it work. Don’t let backlash compromise your machine’s reputation or force you into expensive housing redesigns.
Yantong Tech exists to provide reliable, traceable, and high-precision transmission parts. We help you build machines that last. Do you have a worn gear set or a new design? Contact Yantong Tech today—send us your drawing or sample, and let our engineers calculate the perfect fit for your application.
FAQ
Q1: Can I replace a standard worm gear with a dual lead worm gear?
Yes, but modifications to the shaft mounting are required. While the housing center distance stays the same, you must add a mechanism (shims or threaded ring) to allow the worm shaft to shift axially, which standard housings often lack.
Q2: How much backlash can a dual lead worm gear actually remove?
It can reduce backlash to near-zero levels, typically 0.005mm – 0.010mm. However, you should never aim for “absolute zero” because thermal expansion during operation requires a microscopic oil film gap to prevent seizure.
Q3: Does the gear ratio change when I adjust the backlash?
No, the gear ratio remains absolutely constant. The adjustment only changes the point of contact on the thread flanks; it does not alter the number of teeth on the wheel or threads on the worm.
Q4: What is the maximum torque capacity compared to standard gears?
The torque capacity is roughly equivalent to a standard gear of the same module and material. A dual lead gear is not inherently “stronger” in terms of load bearing; its primary value is maintained precision rather than increased raw power.
Q5: Why is Yantong’s lead time for these gears longer than standard gears?
Precision grinding two distinct leads requires specialized setup and significant time. We prioritize 100% CMM inspection to guarantee the contact pattern, ensuring you receive a precision component rather than a rushing job that might lock up.
