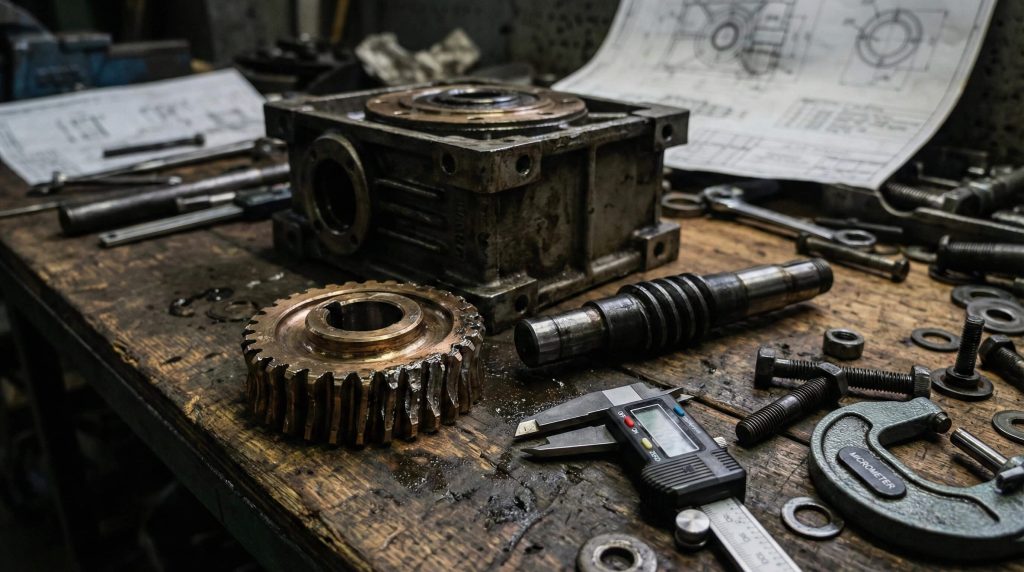

You are staring at a broken gearbox, and the replacement part is obsolete, or perhaps you are prototyping a custom mechanism and need a specific high-torque reduction instantly. Machining custom gears manually is daunting, precise, and unforgiving—one calculation error ruins the entire blank. This guide breaks down the complex process of cutting a worm gear on a lathe into manageable, professional steps, bridging the gap between manual machining skills and industrial-grade results. Brought to you by Yantong Tech, a premier Chinese gear manufacturer with 96 dedicated staff and ISO-certified processes, we specialize in turning complex transmission challenges into reliable, traceable industrial solutions for clients from Germany to the USA.
1. Why Cut a Lathe Worm Gear Manually?
Understanding the Mechanics
Here’s the deal: cutting a worm gear manually transforms rotational speed into high torque, a mechanism critical for heavy lifting and precise positioning. While Yantong Tech utilizes CNC precision for mass production, mastering manual cutting allows for immediate solutions such as:
- Executing emergency repairs on obsolete machinery.
- Rapid prototyping of single units.
- Developing fundamental engineering skills.
Manual vs. Volume Production
What if you need volume? Manual methods are simply too slow and inconsistent for serial production, so Yantong utilizes automated hobbing to achieve ISO 1328 Grade 6-7 standards. This industrial approach guarantees:
- Scalability for large orders.
- Repeatability across thousands of units.
- Full material and process traceability.
Key Takeaway: Use manual cutting for skill building and emergency repair; rely on industrial partners for volume and certification.
| Feature | Manual Lathe | Yantong Industrial Process |
|---|---|---|
| Speed | High labor time per unit | Rapid serial production |
| Precision | Operator skill dependent | ISO 1328 Grade 6-7 |
| Best For | Emergency Repair/One-off | OEM/Volume Orders |
| Traceability | Limited | Full Material & Process Data |
Understanding the tradeoff between manual flexibility and industrial speed is crucial for your project’s success.
2. Essential Tools for Lathe Worm Gear Cutting
Selection of Cutting Tools
To cut a worm gear effectively, start with high-speed steel (HSS) tool bits ground to a 40-degree included angle for a 20-degree pressure angle worm. You might be wondering: can I use a tap? Yes, a tap can act as an improvised hob if it matches the pitch, though a dedicated hob is best for:
- Superior profile accuracy.
- Clean cutting action.
- Reducing mechanical binding.
Rigidity and Measurement
Ready for the good part? Precision measurement tools like dial indicators with 0.01mm resolution ensure your pitch diameter is exact, preventing wasted metal. Rigidity is non-negotiable, requiring specific equipment to hold the blank perpendicular to the spindle:
- 4-jaw chucks for centering.
- Vertical slides.
- Secure mandrels.
Key Takeaway: Rigidity in tooling prevents chatter and ensures the gear teeth are cut cleanly.
| Tool | Purpose | Specification Note |
|---|---|---|
| HSS Tool Bit | Cutting the worm thread | Ground to 20° pressure angle |
| Hob or Tap | Cutting the worm wheel | Must match worm linear pitch |
| Dial Indicator | Measuring setup runout | 0.01mm resolution recommended |
| Mandrel | Holding the wheel blank | Ensure concentricity |
Proper tooling is the foundation of a successful gear cutting operation.
3. Ensuring Safety With a Lathe Worm Gear Setup
Personal Protective Equipment
Safety in machining is about anticipating energy release, meaning PPE like safety glasses is mandatory while long sleeves must be rolled up. But here’s the kicker: chips generated during gear cutting are razor sharp and hot, so you must follow these rules:
- Never clear chips with bare hands.
- Secure long hair to prevent entanglement.
- Wait for the spindle to stop before adjusting.
Machine Integrity Checks
What if the chuck is loose? A flying workpiece is a lethal projectile, so Yantong protocols dictate that every clamping point is double-checked before operation. Ensure the machine is safe by verifying:
- The carriage is locked to prevent drift.
- The chuck key is removed immediately.
- All workpieces are centered and tight.
Key Takeaway: A rigid setup is a safe setup; never bypass safety checks for speed.
| Zone | Checkpoint | Action |
|---|---|---|
| Operator | PPE | Glasses on, sleeves rolled, hair tied |
| Machine | Chuck Key | Removed immediately after use |
| Workpiece | Clamping | Tightened and centered |
| Cutting Zone | Chips | Clear only when spindle stops |
Prioritizing safety protocols protects both the operator and the precision of the final component.
4. Calculating Pitch for Your Lathe Worm Gear
Critical Gear Math
This is where it gets interesting: you must calculate the linear pitch (π × Module) to match the circular pitch of the wheel perfectly. A calculation error here means the teeth will not mesh, so you must verify:
- The distance between thread peaks.
- The theoretical mesh circle.
- The alignment of the Module.
Gearbox and Ratio Setup
What if the ratio is off? The mesh fails, and you scrap the part, so match your lathe’s change gears carefully to the calculated pitch. Yantong engineers verify design data three times to prevent backlash caused by:
- Rounding errors in conversion.
- Metric vs. Imperial mismatches.
- Incorrect lead angles.
Key Takeaway: Accurate math is the cheapest insurance against scrap parts.
| Parameter | Formula | Note |
|---|---|---|
| Linear Pitch | π × Module | Distance between thread peaks |
| Lead | Pitch × No. of Starts | Axial advance per revolution |
| OD (Wheel) | (Teeth + 2) × Module | Outer diameter of the blank |
| Pitch Diameter | Teeth × Module | Theoretical mesh circle |
Precise calculations are the blueprint that ensures your physical machining yields a functional mechanical system.
5. Machining Process for the Lathe Worm Gear Shaft
Turning and Preparation
Look no further for the perfect finish; it starts with a sharp tool, correct speed, and turning the steel stock to the calculated outside diameter. The worm shaft drives the system, so you must ensure:
- Critical concentricity.
- Grinding allowance if hardening.
- A polished surface before threading.

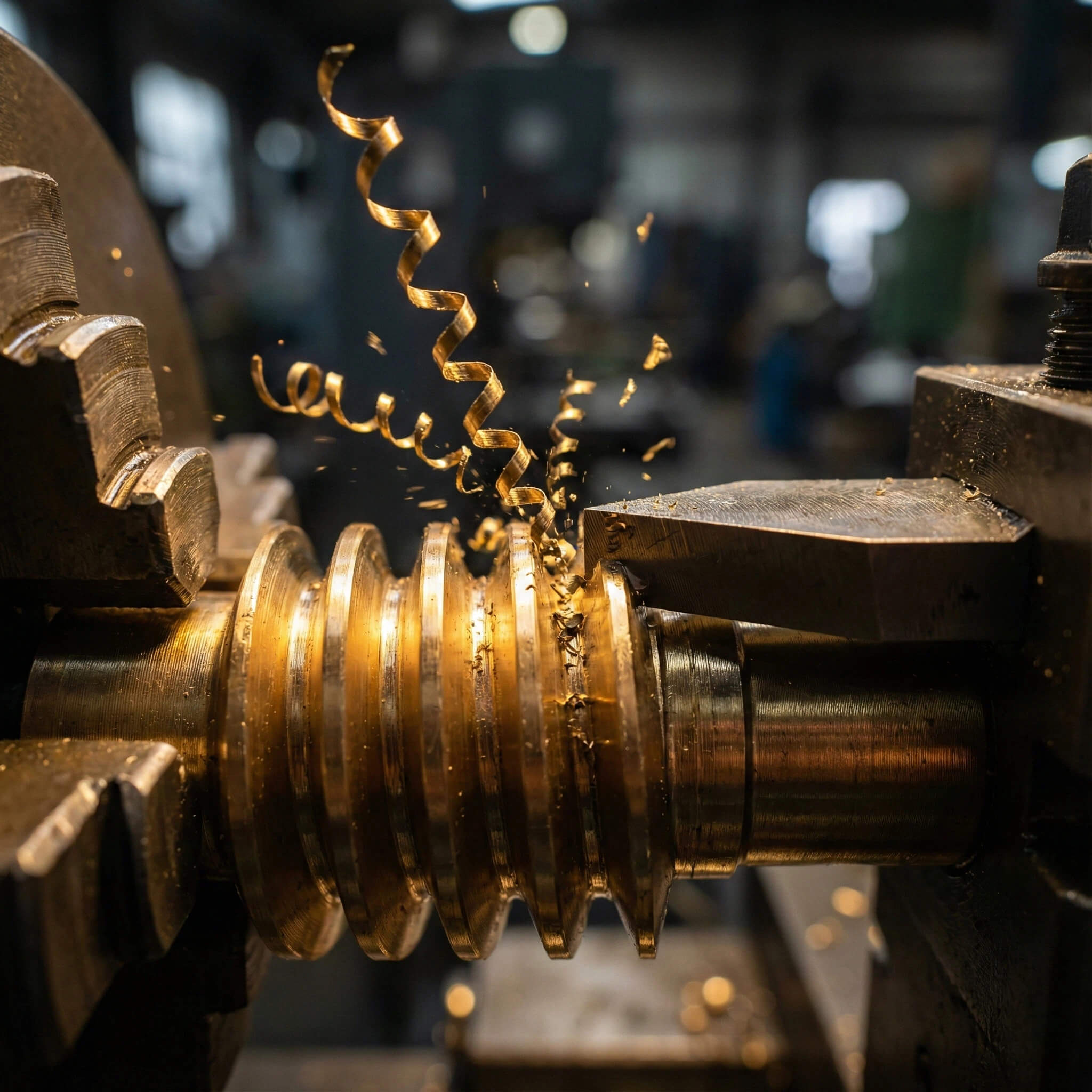

Grinding and Threading
What if the angle is wrong? The transmission will be weak and wear out rapidly, so grind your HSS tool bit to a specific 20-degree pressure angle. Cut the thread using low RPM and high lubrication to handle the long, slender shaft by:
- Taking light passes.
- Reducing tool deflection.
- Checking pitch with a thread gauge.
Key Takeaway: The worm is the driver; make it tough and precise to handle the torque.
| Step | Action | Tip |
|---|---|---|
| 1 | Turn OD | Ensure concentricity |
| 2 | Threading | Use abundant cutting oil |
| 3 | Polish | Remove burrs for smooth mesh |
| 4 | Verify | Check pitch with a thread gauge |
A precisely machined shaft is the prerequisite for a smooth and durable gear transmission.
6. Hobbing the Wheel for a Lathe Worm Gear
Preparation and Concaving
Prepare the worm wheel blank by turning bronze or brass to the correct size, ideally concaving the face to match the radius of the worm. Here is the secret: concaving the face maximizes the contact area, which significantly improves:
- Load-bearing capacity.
- Mesh stability.
- Transmission efficiency.
Gashing and Free Hobbing
What if you skip gashing? You risk uneven tooth spacing and a ruined blank, so pre-cut slots to guide the hob before starting. Use the “free hobbing” process where the rotating hob drives the blank to achieve:
- The correct tooth count.
- Full tooth depth.
- Precise involute profiles.
Key Takeaway: Synchronization between the hob and the blank is the secret to a perfect tooth profile.
| Phase | Technique | Goal |
|---|---|---|
| Prep | Concave Turning | Maximize contact area |
| Roughing | Gashing | Establish correct tooth count |
| Finishing | Free Hobbing | Generate precise involute profile |
| Material | Bronze Selection | Low friction against steel worm |
The synchronization between the cutting tool and the blank determines the ultimate accuracy of the gear teeth.
7. Finishing Techniques for a Lathe Worm Gear
Deburring Essentials
You might be wondering: why bother with such small details? Deburring removes sharp edges that could cut seals or introduce debris into the gearbox. Use fine files or scotch-brite pads to smooth every edge to ensure:
- Safety during handling.
- Seal protection.
- Clean assembly.
Lapping and Hardening
Ready for the result? Lapping runs the worm and gear together with abrasive paste to create a silky smooth operation by correcting minor profile errors. While home shops use flame hardening, Yantong uses industrial heat treatment to guarantee:
- Uniform hardness.
- Reduced distortion.
- Extended wear life.
Key Takeaway: Surface finish dictates the efficiency and noise level of the gear set.
| Process | Tool/Material | Benefit |
|---|---|---|
| Deburring | Hand file | Safety and seal protection |
| Lapping | Valve compound | Reduces friction and noise |
| Hardening | Heat/Quench | Increases wear life significantly |
| Polishing | Fine abrasive | Improves efficiency |
Attention to detail during the finishing stage transforms a rough component into a professional-grade mechanism.
8. Troubleshooting Common Lathe Worm Gear Mistakes
Handling Vibration and Depth
What’s the real story? Chatter is usually caused by a lack of rigidity, so shorten your tool overhang immediately and ensure the workpiece is supported. Incorrect tooth depth leads to binding, so you must verify:
- Center distance calculations.
- Tool sharpness.
- Incremental cut depth.
Material Incompatibility
What if it binds? Rapid wear often stems from incompatible materials like steel on steel, which causes galling and failure. To ensure longevity and self-lubricating properties, always pair:
- A steel worm shaft.
- A bronze worm wheel.
- Compatible lubricants.
Key Takeaway: Bronze wheels save steel worms; material pairing is as important as machining precision.
| Symptom | Likely Cause | Fix |
|---|---|---|
| Chatter | Speed too high/Loose tool | Reduce RPM, tighten setup |
| Binding | Shallow cut | Deepen tooth profile |
| Whining | Poor finish | Lap the gear set |
| Rapid Wear | Material mismatch | Use Bronze Wheel/Steel Worm |
Identifying the root cause of machining errors prevents wasted material and ensures a functional assembly.
9. When to Outsource Your Lathe Worm Gear Project
Limits of Manual Production
Manual production is great for one unit, but terrible for one thousand. But here’s the kicker: consistency drops as volume rises, making it incredibly difficult to achieve ISO specs manually. Complex projects often require industrial capabilities for:
- Hardened steel grinding.
- Consistent batch tolerances.
- Cost-effective scaling.
The Yantong Advantage
What if you need certification? Call Yantong Tech to provide full traceability and facilitate engineer-to-engineer communication for your design. Partnering with us ensures your gears meet global standards through:
- Production optimization.
- Documentation and testing.
- Reliable supply chain management.
Key Takeaway: Outsource to Yantong Tech for scale, certification, and peace of mind.
| Factor | DIY/Manual | Yantong Tech |
|---|---|---|
| Volume | < 5 units | 50 – 50,000+ units |
| Accuracy | Functional | Certified Precision (ISO) |
| Docs | None | Full Traceability |
| Cost | High labor/unit | Low unit cost at volume |
Recognizing the transition point from prototyping to industrial manufacturing is key to scaling your business efficiently.
Conclusion
Cutting a lathe worm gear is a masterclass in machining, requiring precise setup, accurate math, and patience. While manual methods are excellent for repairs and prototypes, industrial reliability demands professional consistency. Have you perfected your prototype and need to scale? Contact Yantong Tech today. We turn your designs into reliable, high-precision industrial components with honest pricing and engineer-level support. Don’t let a weak gear be the reason your machine stops—choose reliability.
FAQ
Q1: Can I cut a worm gear on a standard lathe without a hob?
Yes, it is possible to use a single-point fly cutter or a modified tap, though a dedicated hob provides superior profile accuracy and smoother operation.
Q2: What’s the best material for a worm gear wheel?
Phosphor bronze or Aluminum bronze are the best choices because they offer low friction and high wear resistance against a steel worm, preventing fatal galling.
Q3: How do I know if my gear ratio calculation is correct?
You can verify this by dividing the number of teeth on the wheel by the number of starts on the worm shaft; if the physical result matches your target ratio, your math is solid.
Q4: How do I know if my gear mesh is too noisy?
Excessive noise typically indicates poor surface finish or incorrect pressure angles; if lapping with abrasive paste does not quiet the mechanism, the geometry is likely flawed.
Q5: Can I request Yantong Tech to reverse engineer a sample?
Yes, we specialize in reverse engineering and material analysis to replicate obsolete parts and optimize their designs for better longevity than the original.
