You are designing a heavy-duty lifting mechanism or a compact conveyor system where space is tight, but torque requirements are massive. Standard gearboxes are often too bulky to fit the housing, and you worry that a sudden power loss could cause the load to reverse dangerously, risking operator safety and expensive equipment damage. A precision-engineered face worm gear set provides the high reduction ratio, compact footprint, and self-locking safety mechanics you need to secure your equipment effectively. At Yantong Tech, we manufacture reliable industrial gears that prioritize stability and traceability for engineers who need facts, not just promises.

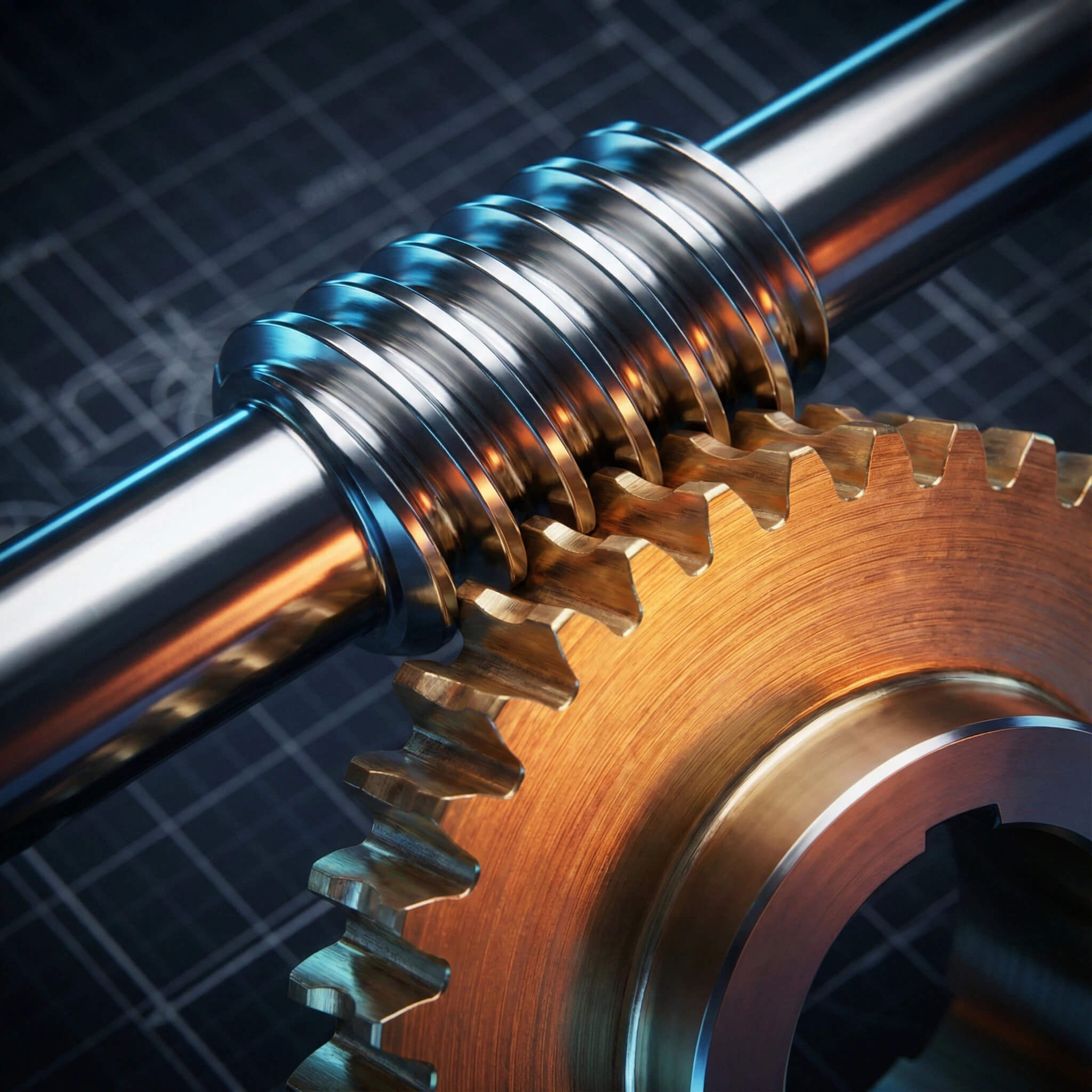

1. Understanding Face Worm Gear Basics
What defines this gear type?
- It consists of a worm screw meshing with a worm wheel designed for non-intersecting, right-angle shaft arrangements.
- Here’s the deal: the unique sliding contact creates performance characteristics distinct from standard rolling gears.
- This geometry allows for specific power transmission angles that standard gears cannot achieve.
How does it transmit power?
- Power flows from the worm screw to the wheel, converting high rotational speed into high torque output effectively.
- This mechanism allows you to achieve significant speed reduction in a single mechanical stage.
- It simplifies the transmission chain by removing intermediate shafts.
Where does it fit best?
- These gears are ideal for packaging machinery and food processing equipment where hygiene and space are critical.
- They are perfect for applications requiring 90-degree power turns in tight enclosures.
- Designers frequently use them where space constraints prevent the use of inline gearboxes.
2. Face Worm Gear for High Torque Needs
Can it handle heavy loads?
- Yes, the specific gear geometry allows for high shock load absorption across the tooth flank.
- Bottom line: it handles torque spikes that would likely strip standard spur gears.
- Reliability increases significantly in start-stop heavy industrial cycles.
Why is the ratio so high?
- You can achieve ratios up to 100:1 in a single step, which is unmatched by other gear types.
- This capability reduces the need for complex, multi-stage gear trains that take up valuable space.
- It simplifies your mechanical design and reduces the total component count.
Does it resist shock loads?
- The sliding action creates a cushioning effect on impact, absorbing energy rather than fracturing.
- This protects the motor and driven load from sudden torque spikes during operation.
- It effectively reduces the risk of catastrophic tooth fracture under load.
| Performance Feature | Benefit |
|---|---|
| Shock Absorption | Cushions impact to protect motors. |
| Ratio Capacity | Up to 100:1 in a single stage. |
| Load Management | Resists stripping under heavy spikes. |
Analysis: The unique geometry allows engineers to eliminate multi-stage trains while maintaining robust protection against operational torque spikes.
3. Why Use Face Worm Gear for Braking?
Is it truly self-locking?
- High-ratio sets cannot be driven backwards by the load, providing inherent braking capabilities.
- You might wonder: does this completely replace a mechanical brake in safety-critical systems?
- It acts as a robust secondary safety feature for lifts and hoists.
How does safety improve?
- It prevents gravity-fed conveyors from rolling back dangerously when the power is cut or the line stops.
- This adds critical redundancy to hoisting and lifting equipment in industrial settings.
- It increases operator safety during maintenance or unexpected power failures.
When does back-driving occur?
- Low ratios (typically under 30:1) may not self-lock reliably due to the steeper lead angle.
- Vibration can sometimes overcome the locking friction, causing creep in the system.
- Yantong engineers calculate the specific lead angle to ensure your safety factor.
| Safety Aspect | Function |
|---|---|
| Self-Locking | Prevents gravity rollback on power loss. |
| Redundancy | Acts as secondary braking for hoists. |
| Limitation | Ratios <30:1 may require external brakes. |
Analysis: While not a replacement for primary brakes in all contexts, the self-locking nature provides an essential layer of passive safety for vertical applications.
4. Face Worm Gear in Precision Systems
How accurate is the motion?
- Precision grinding ensures smooth angular transmission for exacting industrial requirements.
- Look: at Yantong Tech, we achieve ISO grade 6-7 for consistent output in every batch.
- This level of accuracy is critical for indexing heads and rotary tables.
Does backlash affect it?
- Backlash can be minimized through precise center distance control during the assembly process.
- Adjustable designs allow for wear compensation over the machine’s lifecycle.
- This is essential for maintaining automation positioning accuracy over years of use.
Can you adjust the mesh?
- Duplex worm designs allow backlash adjustment without changing the center distance of the shafts.
- This ensures long-term precision in CNC machine applications even as components age.
- It maintains accuracy even as the bronze wheel wears down naturally.
| Precision Factor | Specification |
|---|---|
| ISO Grade | Consistent 6-7 output accuracy. |
| Backlash Control | Adjustable center distance or duplex design. |
| Longevity | Compensation features for long-term wear. |
Analysis: Utilizing duplex designs allows operators to maintain factory-level precision throughout the machine’s lifecycle without replacing the gear set.
5. Face Worm Gear for Quiet Operations
Why is operation so silent?
- Sliding contact generates significantly less noise than the rolling impact found in spur gears.
- Here is the secret: fewer moving parts mean less vibration resonates through the machine frame.
- They are ideally suited for stage equipment and elevators where silence is mandatory.
Does sliding contact help?
- The oil film dampens the metal-to-metal contact noise, acting as a hydraulic cushion.
- This results in a smoother “hum” rather than the high-pitched “whine” of other gear types.
- It is great for environments with strict noise pollution regulations.
Where is silence critical?
- Silence is non-negotiable in medical imaging equipment and adjustable patient beds.
- It is also required for library or office automation systems to maintain a professional environment.
- Luxury automated gates and door mechanisms rely on this silent operation for user experience.
| Noise Characteristic | Benefit |
|---|---|
| Sliding Contact | Eliminates high-pitched impact whine. |
| Vibration | Low resonance due to fewer parts. |
| Environment | Ideal for medical and office settings. |
Analysis: The inherent hydraulic cushioning of the sliding contact makes worm gears the only viable choice for noise-sensitive luxury and medical environments.
6. Compact Design with Face Worm Gear
How much space is saved?
- It replaces bulky multi-stage spur gear reducers, often cutting housing volume by half.
- Think about it: you get more power in a significantly smaller machine footprint.
- This compactness allows for tighter integration into robotic arms and mobile units.
Is right-angle useful?
- It allows motors to be mounted alongside the machine body rather than protruding outward.
- This eliminates hazardous protruding motor assemblies that can snag on clothing or equipment.
- It optimizes the factory layout for conveyors and assembly lines.
Can it replace gearboxes?
- It often replaces larger planetary boxes in low-speed applications where torque is the priority.
- This switch reduces total machine weight and structural support requirements.
- It simplifies the overall kinematic chain of the device, reducing points of failure.
| Design Advantage | Impact |
|---|---|
| Volume | Reduces housing size by up to 50%. |
| Orientation | Flush motor mounting improves safety. |
| Complexity | Replaces multi-stage planetary boxes. |
Analysis: Switching to right-angle worm drives optimizes factory floor footprints and eliminates protrusion hazards common with inline motors.
7. Choosing Materials for Face Worm Gear
Why bronze and steel?
- The worm is hardened steel, while the wheel is specialized bronze to manage friction.
- Simply put: differing hardness levels prevent galling and seizing under heavy load.
- We use premium materials like 18CrNiMo7-6 steel and CuSn12Ni2 bronze.
Does heat treatment matter?
- Carburizing the worm shaft ensures the durability and hardness required to resist wear.
- Yantong provides full heat treatment reports with every batch to prove specification compliance.
- This ensures the steel cuts through the oil film, not the wheel surface.
How to reduce wear?
- Proper material pairing significantly extends service life by reducing the coefficient of friction.
- The surface finish on the steel worm is critical; it must be mirror-smooth.
- Lubrication grooves must be designed correctly to maintain the oil wedge.
| Material Spec | Function |
|---|---|
| Worm Shaft | Hardened 18CrNiMo7-6 steel for durability. |
| Worm Wheel | CuSn12Ni2 bronze to prevent seizing. |
| Surface | Mirror finish reduces friction coefficient. |
Analysis: The metallurgical pairing of hardened steel and specialized bronze is non-negotiable for preventing catastrophic seizing under load.
8. Maintaining Your Face Worm Gear
Is lubrication critical?
- Yes, sliding friction generates significant localized heat that breaks down standard oils.
- Warning: standard grease often fails; you must use synthetic oil designed for worm drives.
- Proper lubrication prevents premature pitting and bronze wheel degradation.
How to spot early wear?
- Monitor for increased backlash or the presence of metallic bronze particles in the oil.
- Check for temperature spikes during standard operation, which indicate friction issues.
- Listen for changes in the operational noise pitch, often a sign of poor meshing.
When to replace the set?
- Replace the set when backlash exceeds the allowable tolerance for your specific process.
- If pitting covers more than 20% of the tooth flank, failure is imminent.
- You must replace them as a matched pair to ensure proper meshing and longevity.
| Maintenance Check | Indicator of Failure |
|---|---|
| Lubrication | Breakdown of standard grease (Use Synthetic). |
| Particles | Bronze flakes visible in oil. |
| Replacement | >20% pitting or excessive backlash. |
Analysis: Neglecting specific synthetic lubrication requirements is the leading cause of premature failure in worm gear applications due to high sliding heat.
9. Sourcing Reliable Face Worm Gear
How to verify quality?
- Always ask for contact pattern checks and material certificates before accepting a shipment.
- Don’t forget: traceability from raw material to finish is key to long-term reliability.
- Yantong provides CMM reports and heat treatment curves for total transparency.
Why does customization matter?
- Standard catalogs often fail to meet specific load, space, or environmental needs.
- Customizing the lead angle optimizes efficiency for your specific motor and speed requirements.
- We adapt designs to your exact ISO accuracy requirements for a perfect fit.
What is the Key Takeaway?
- Worm gears offer a unique blend of torque, safety, and silence unavailable in other types.
- Choosing the right manufacturer ensures longevity and reduced Life Cycle Costs (LCC).
- Review the summary below for a quick decision guide.
Analysis: Face Worm Gear Performance
| Feature | Benefit to Engineer | Yantong Standard |
|---|---|---|
| Reduction Ratio | High reduction in small space (up to 100:1). | Custom lead angles available. |
| Self-Locking | Safety against back-driving loads. | Calculated per application. |
| Noise Level | Exceptionally quiet operation. | Ground to Ra 0.4 or better. |
| Traceability | Ensures consistent material performance. | Full documentation provided. |
Analysis: For applications prioritizing torque density and silence over pure energy efficiency, worm gears remain the superior engineering choice.
Conclusion
Don’t let space constraints or safety risks compromise your machinery’s performance or reliability. Yantong Tech delivers reliable, traceable worm gear solutions tailored to your real-world industrial conditions, ensuring you never have to guess about quality. We aim to be the partner you trust to keep your equipment running, minimizing downtime through honest manufacturing and engineering support. Contact our engineering team today to discuss your transmission requirements and get a quote based on real engineering data.
FAQ
Q1: Can I use a face worm gear for high-speed applications?
No, because the high sliding friction generates excessive heat at high speeds, leading to rapid wear and efficiency loss; they are best for low-to-medium speeds.
Q2: Can I replace just the worm wheel and keep the old shaft?
No, it is highly recommended to replace them as a matched set because the old shaft will have wear patterns that will quickly destroy a new wheel.
Q3: Can I use standard gear oil for my worm gear set?
No, you should use compounded oils or synthetic lubricants specifically designed for worm gears to handle the high sliding friction and prevent scoring.
Q4: Can I expect the worm gear to be 100% efficient?
No, worm gears generally have lower efficiency (50-90%) compared to spur gears due to sliding contact, so you must account for power loss in your motor selection.
Q5: Can I customize the material of the worm wheel at Yantong?
Yes, we can customize the bronze alloy (e.g., Aluminum Bronze vs. Phosphor Bronze) based on your specific load, speed, and durability requirements.
